JAYITEC EduRaman PRO
Open-Path Multifunctional Raman Spectrometer for Education
EduRaman Pro is an open-path multifunctional spectroscopy system designed for university teaching and hands-on laboratory training. It combines Raman spectroscopy with bright-field microscopy and configurable absorption and fluorescence spectroscopy modules, allowing students to observe, assemble, align and calibrate key optical components.
EduRaman is also available as a streamlined Raman-only configuration with an open optical path and single-grating design for foundational spectroscopy teaching.
- Open Optical Path & Modular Architecture
- Raman, Microscopy & Configurable Spectroscopy Modules
- Hands-On Assembly & Calibration
- Structured Experiments & Teaching Software
Product Highlights

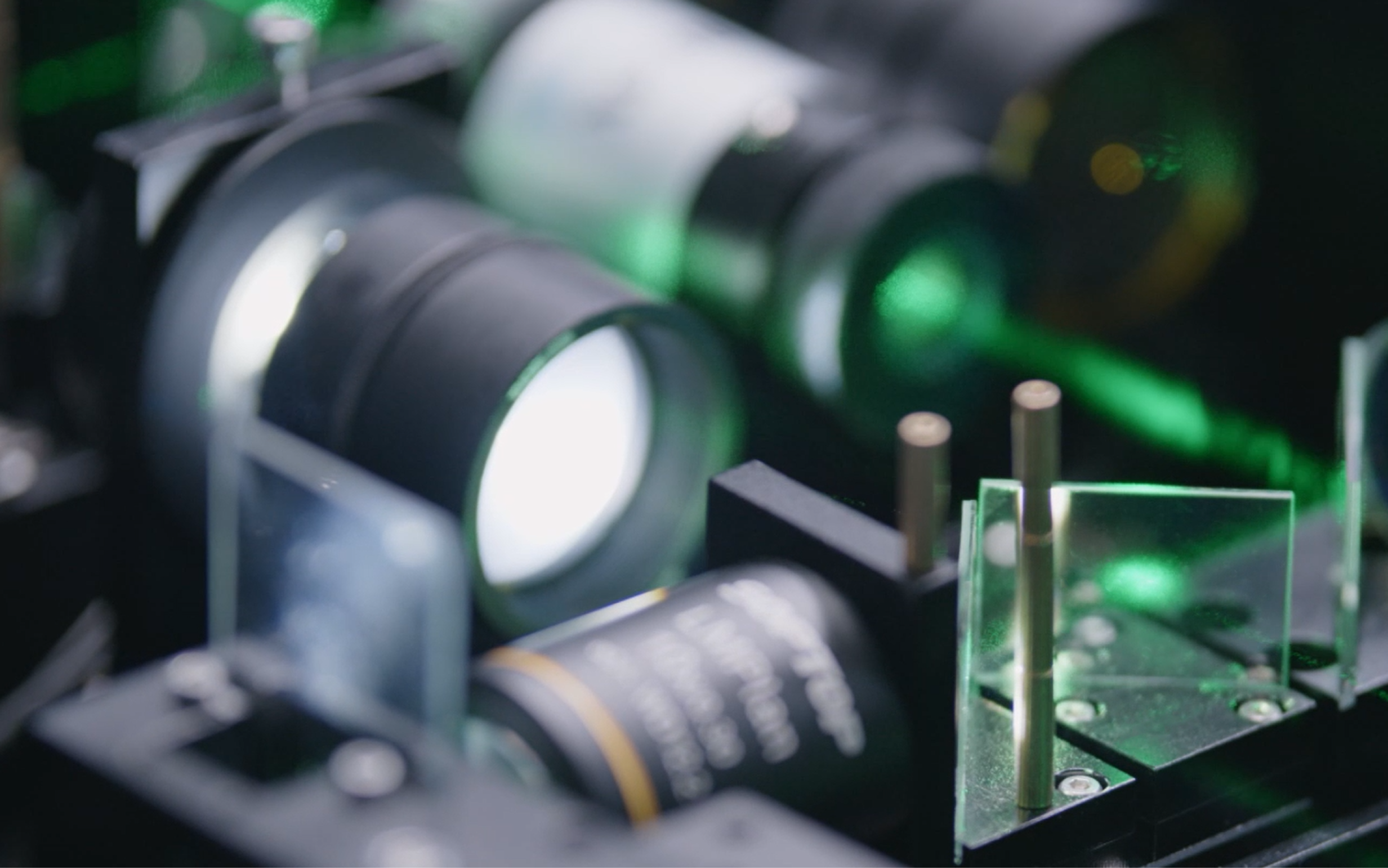

Open Optical Path
Visible optical components help students connect spectroscopy theory with real instrument operation.
Configurable Multimodal Spectroscopy
Combine Raman spectroscopy with bright-field microscopy and configurable absorption and fluorescence modules for extended spectroscopy teaching.
Modular Learning Architecture
Independent modules support hands-on assembly, optical alignment, wavelength calibration and performance experiments.
Complete Teaching Ecosystem
Dedicated software, guided experiments and course materials support introductory and advanced laboratory teaching.

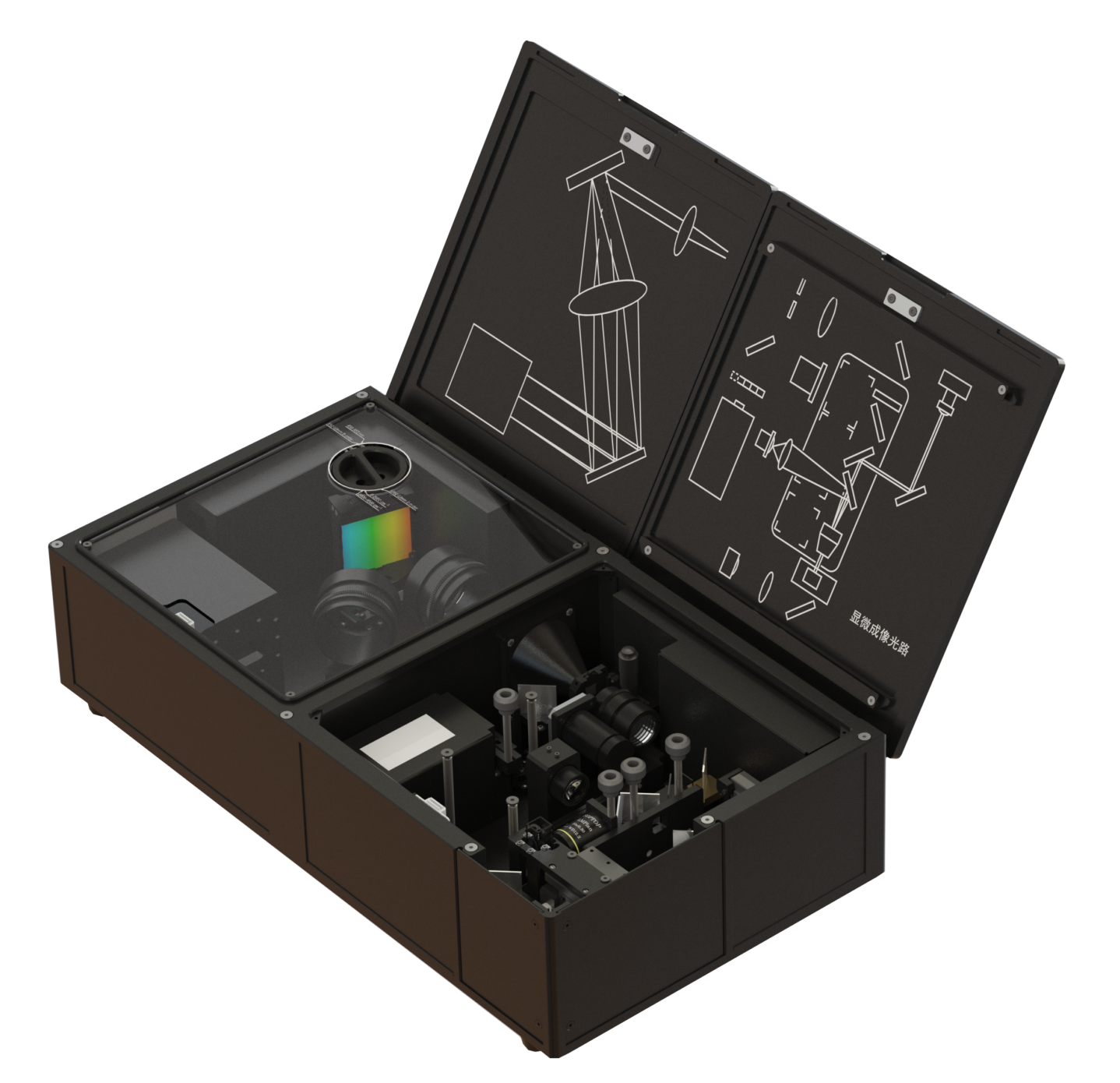

System Overview
Explore the open optical layout and modular design of the EduRaman Pro platform.

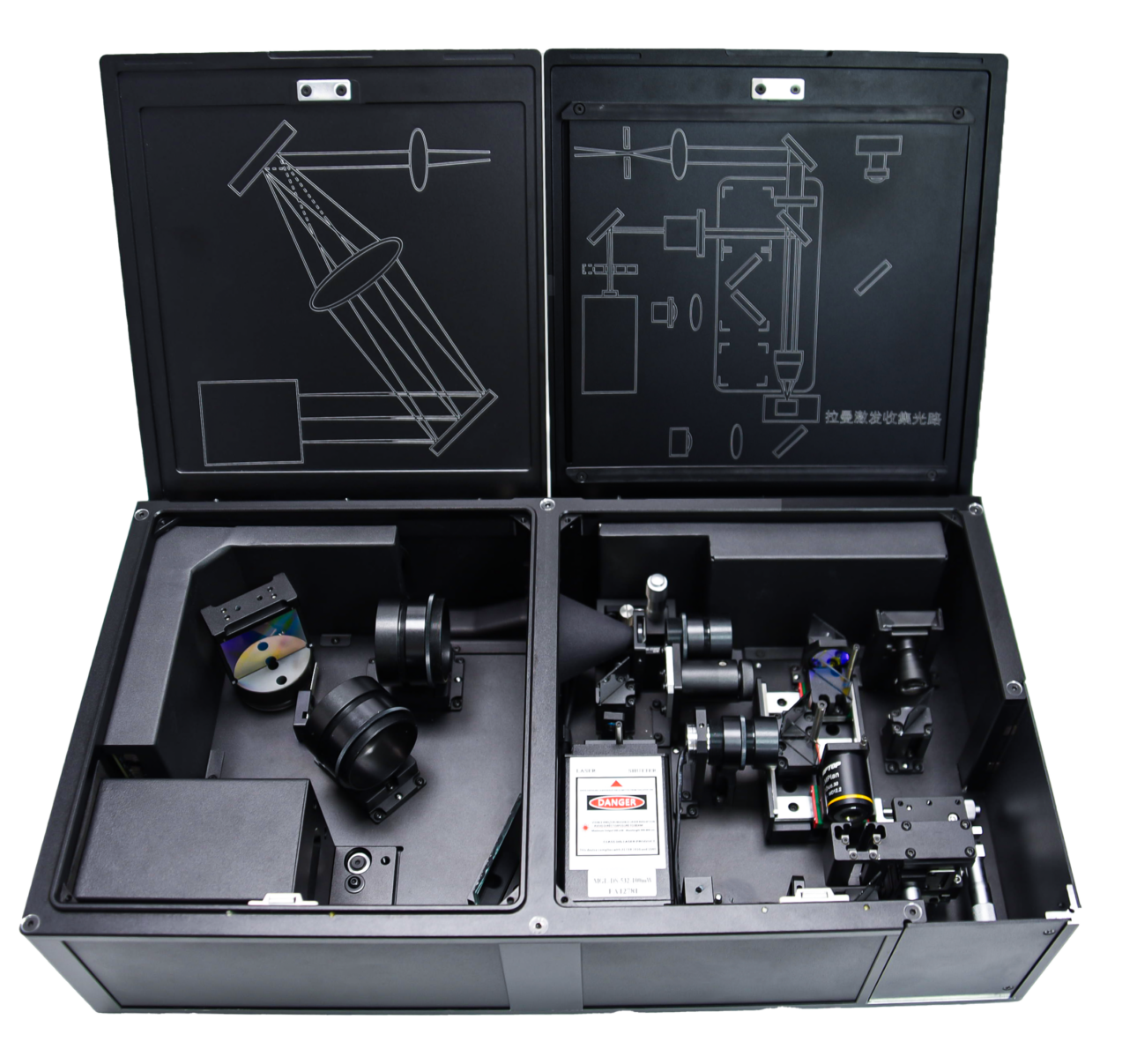

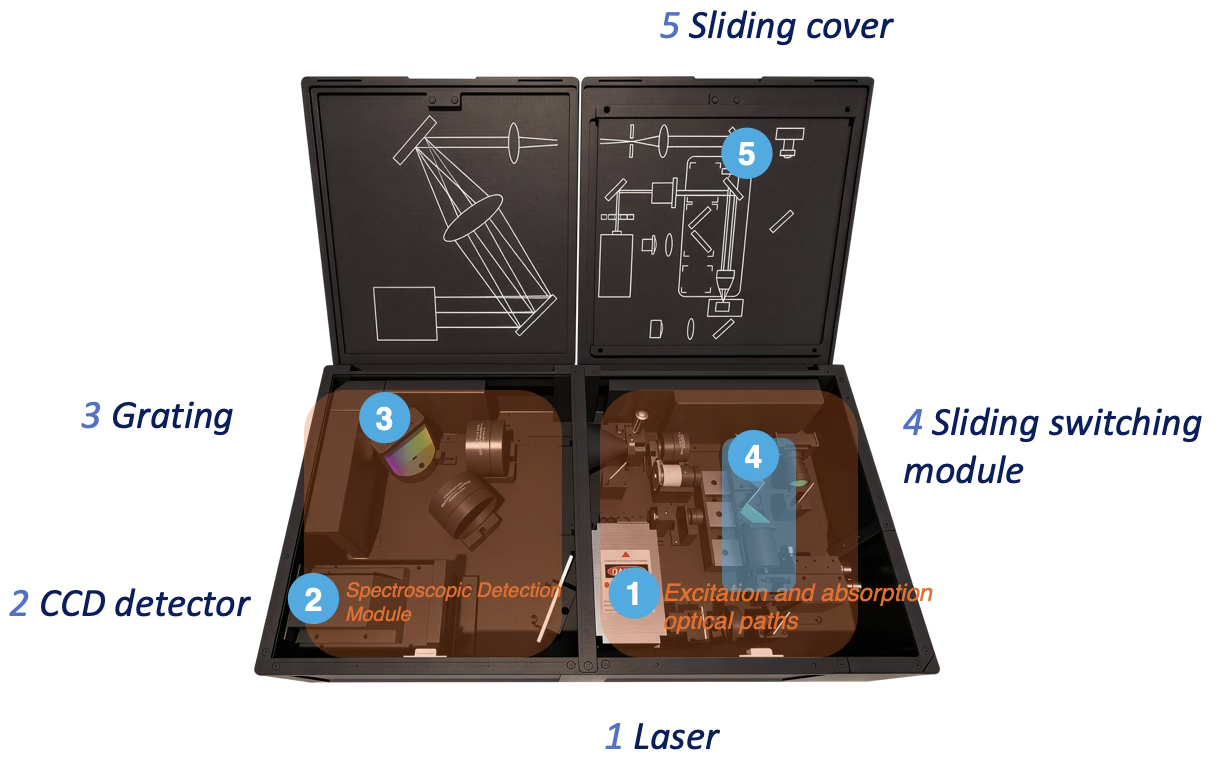

System Configuration

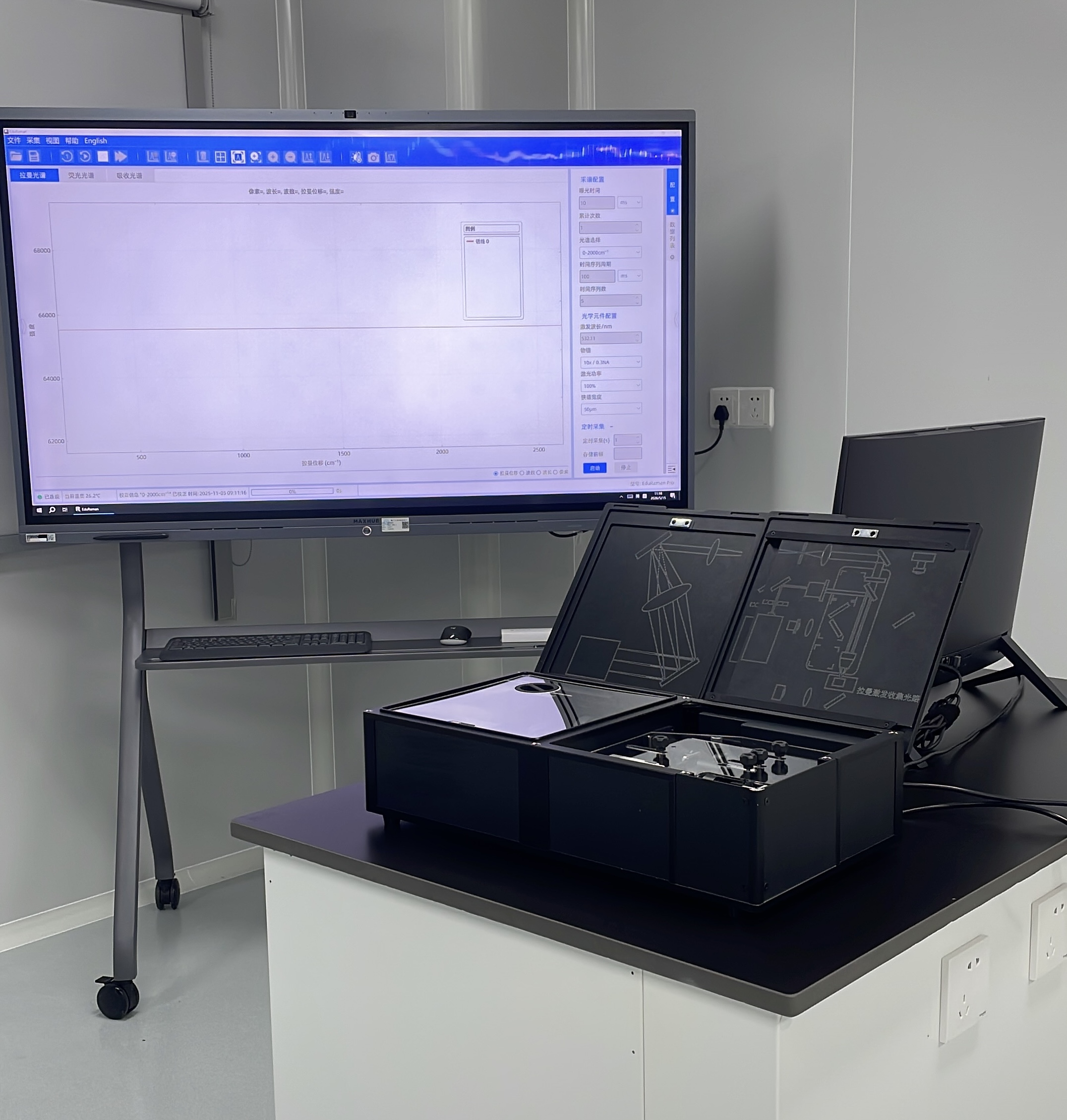

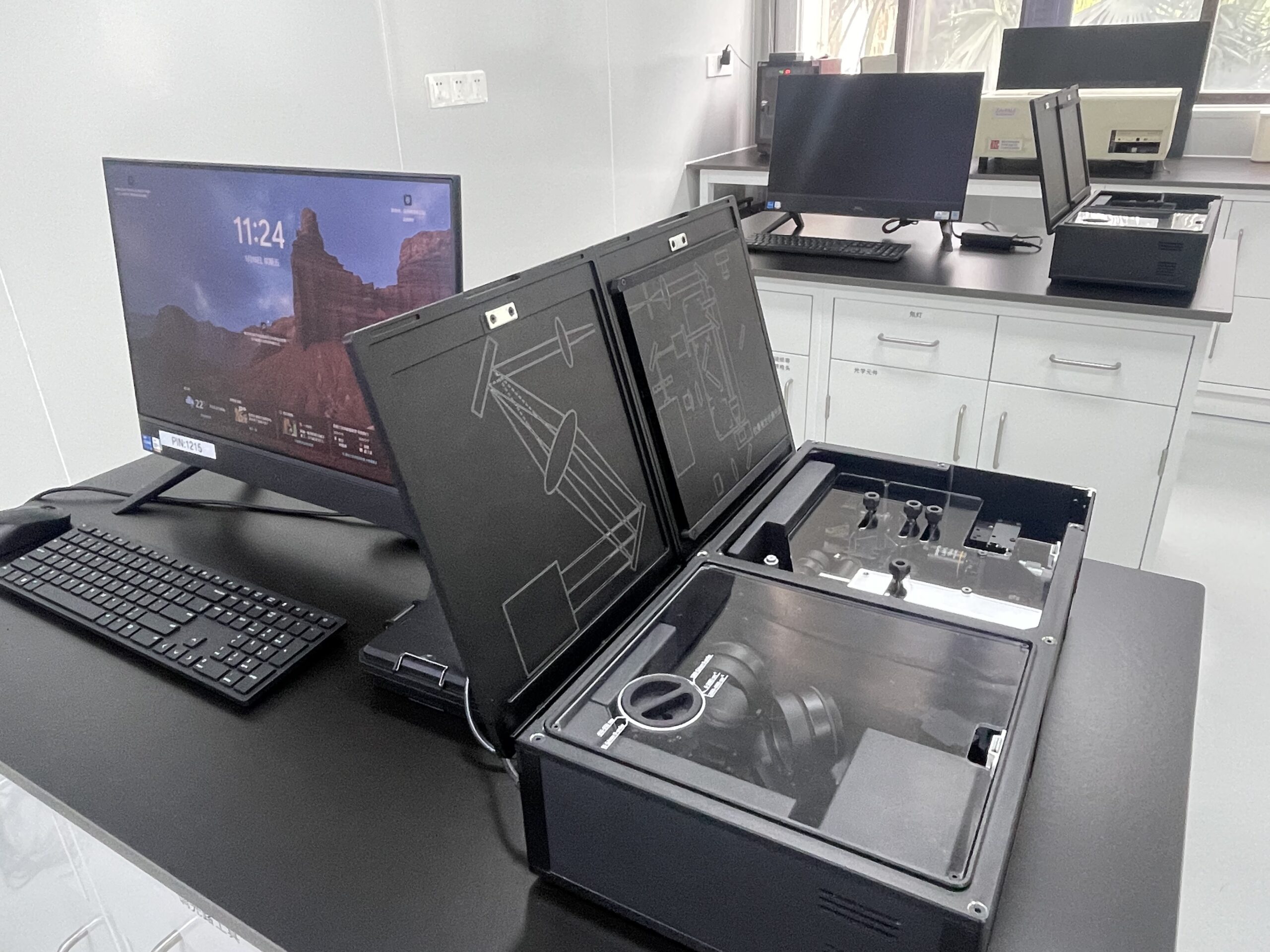

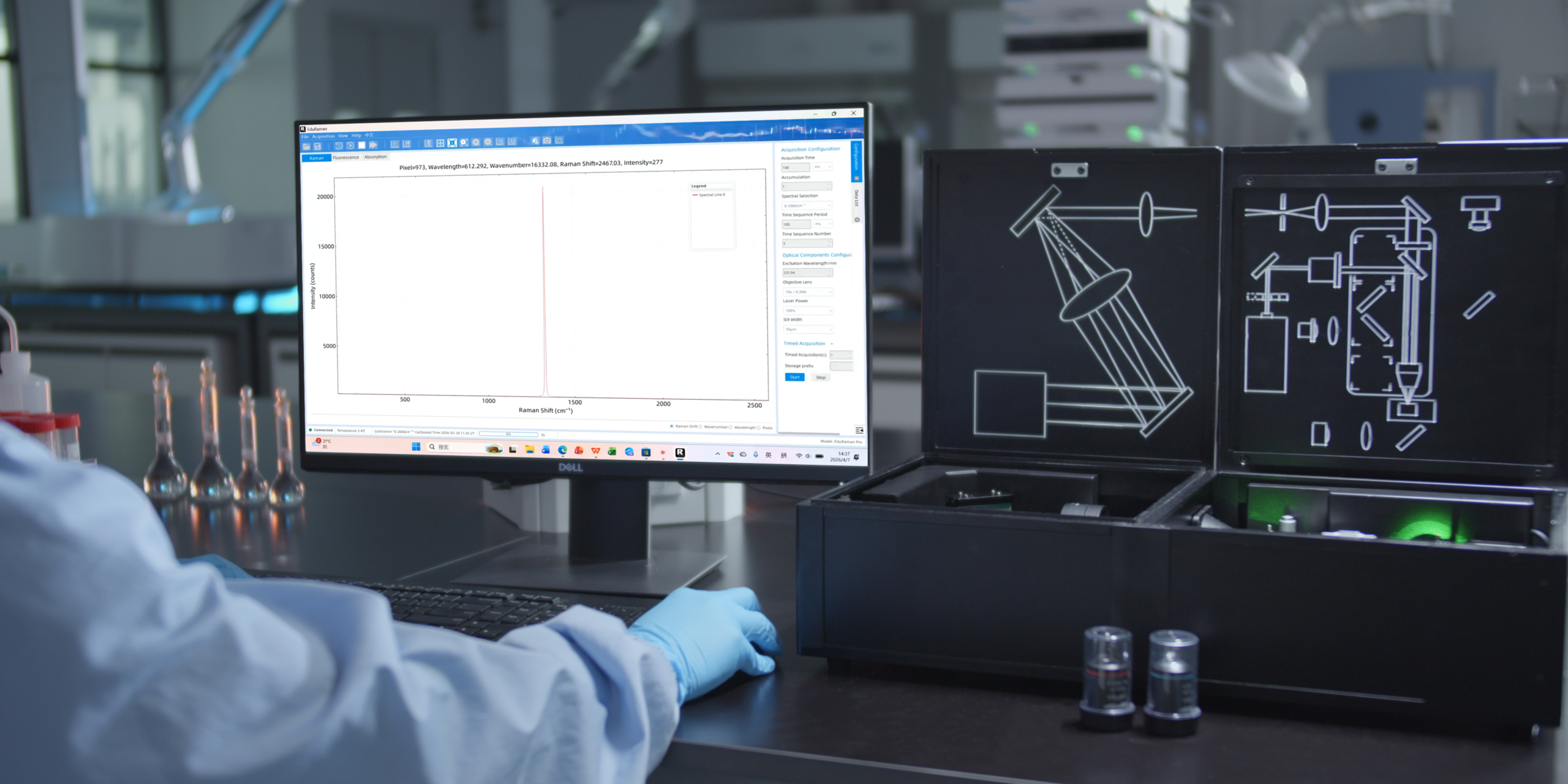

System in Operation

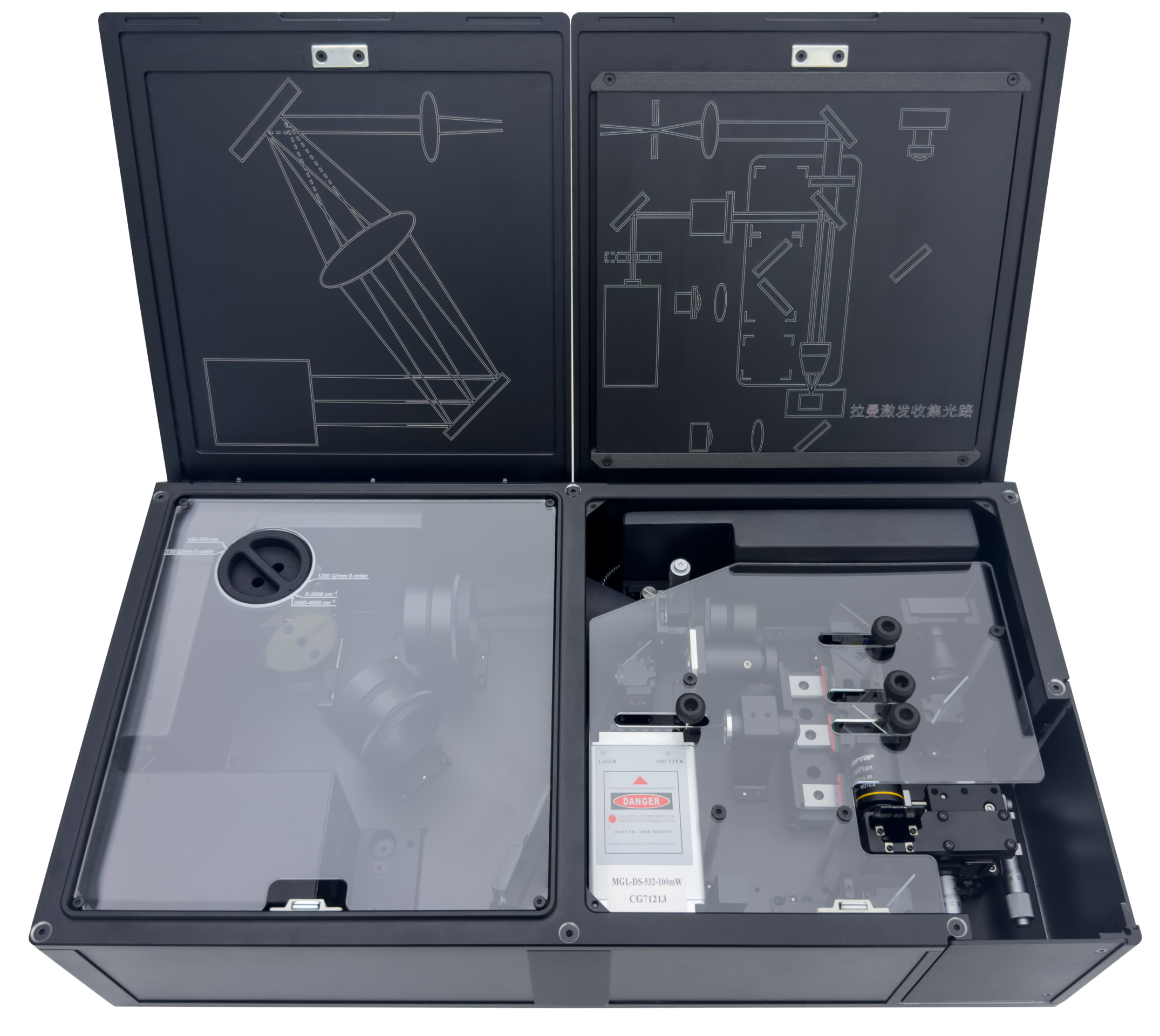

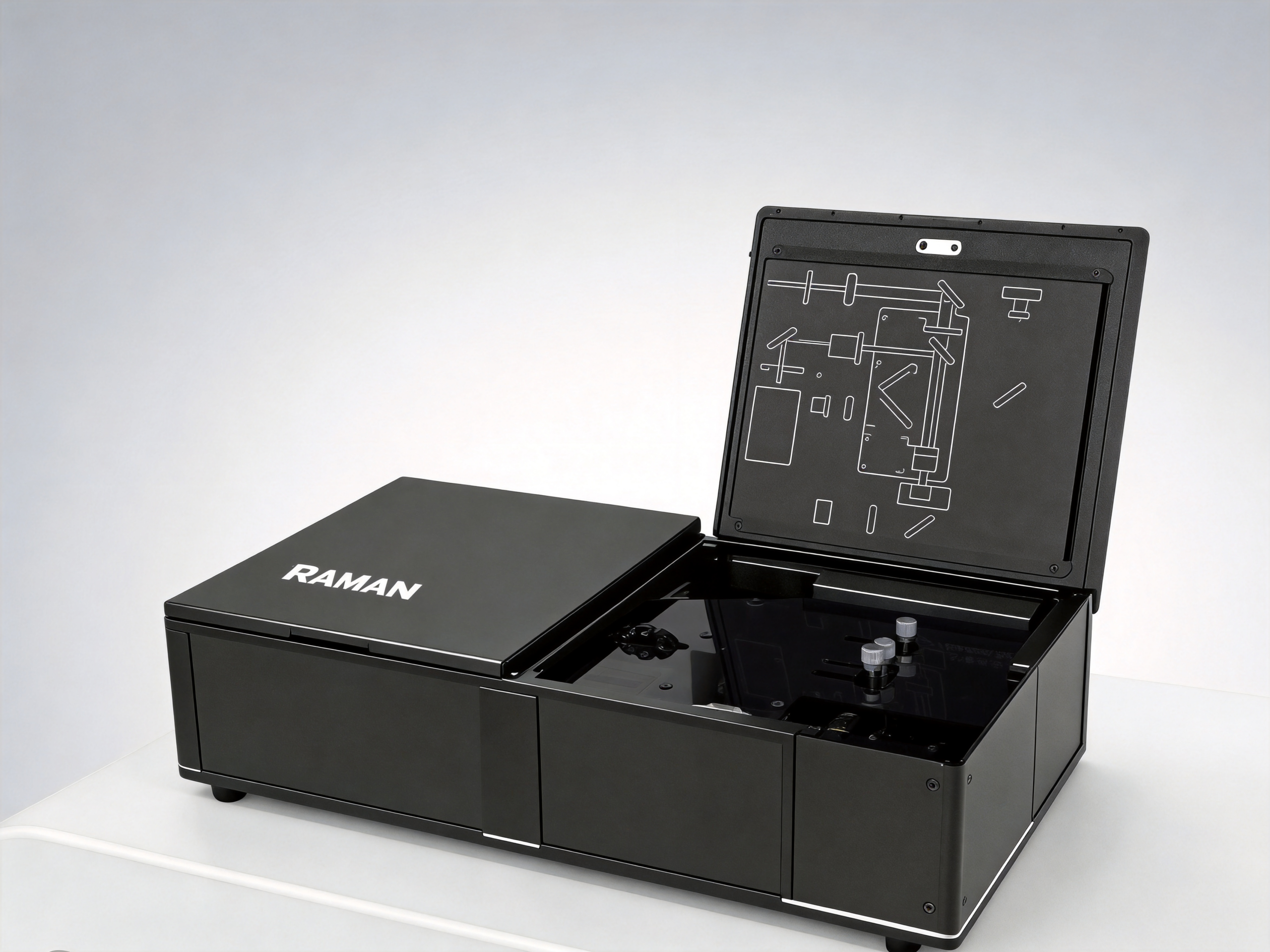

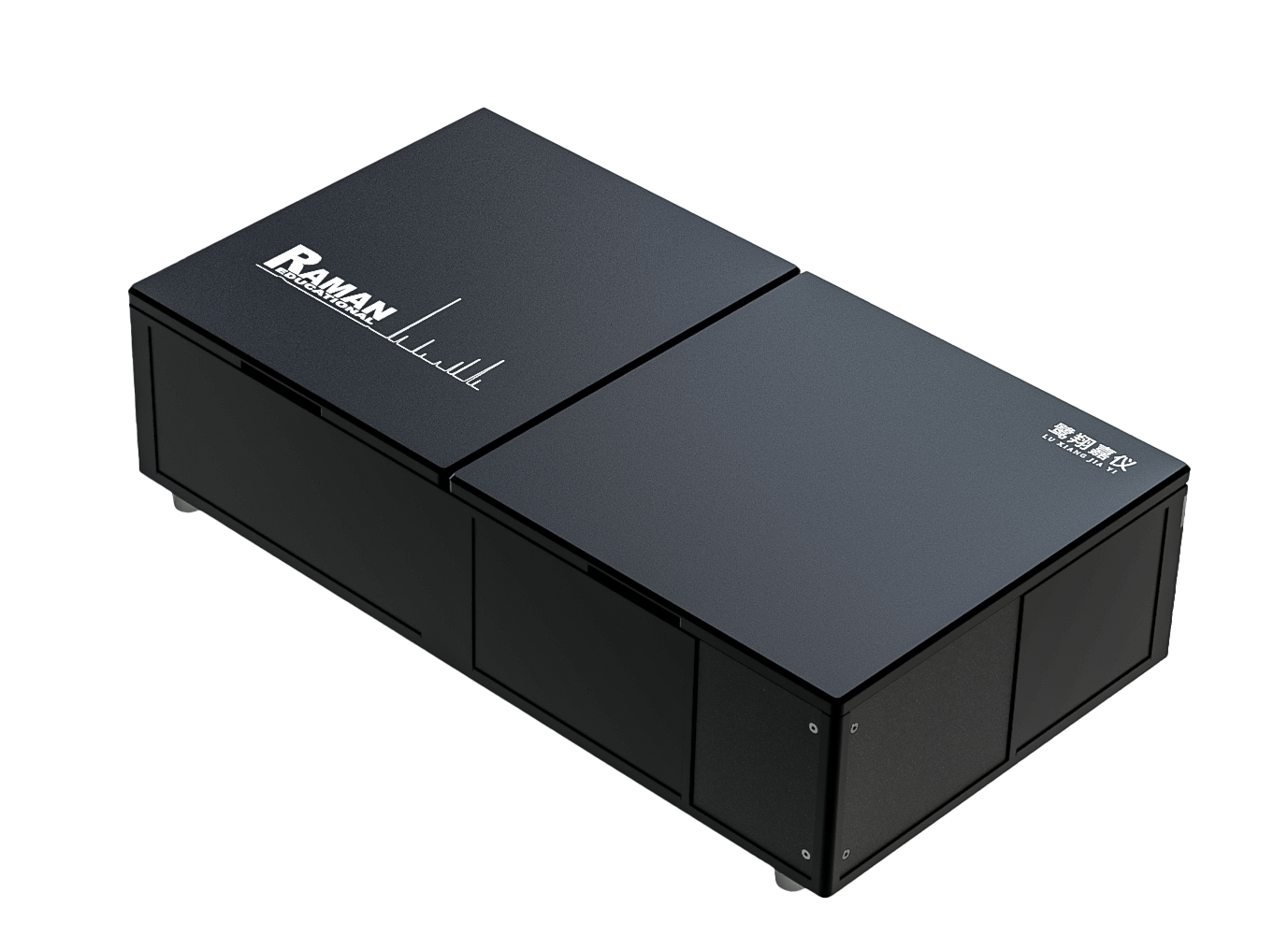

Product Views & Details
Application Examples
Explore progressive teaching experiments supported by EduRaman Pro, from Raman fundamentals and quantitative analysis to reaction monitoring and multimodal spectroscopy.
Foundations

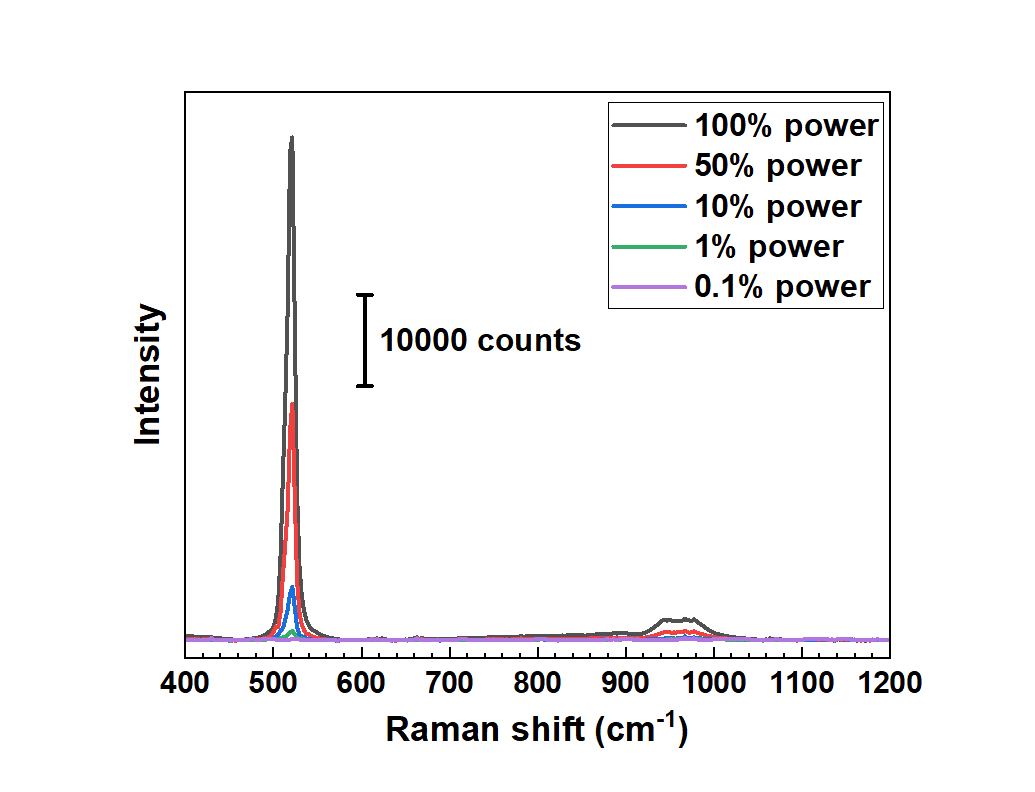

Raman Fundamentals
Observe laser-power dependence, Raman peak intensity and molecular fingerprint positions through guided measurement and calibration exercises.
Analytical Applications

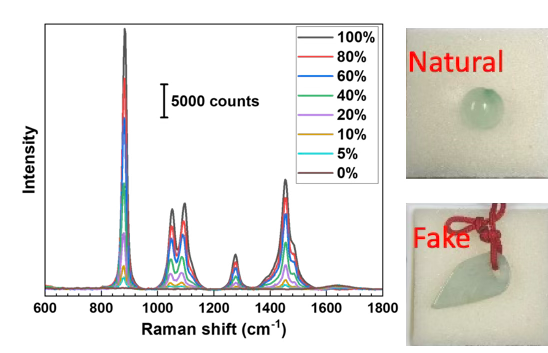

Qualitative & Quantitative Analysis
Identify materials and evaluate concentration-dependent Raman responses using examples such as ethanol solutions, pigments and mineral samples.
Reaction Monitoring

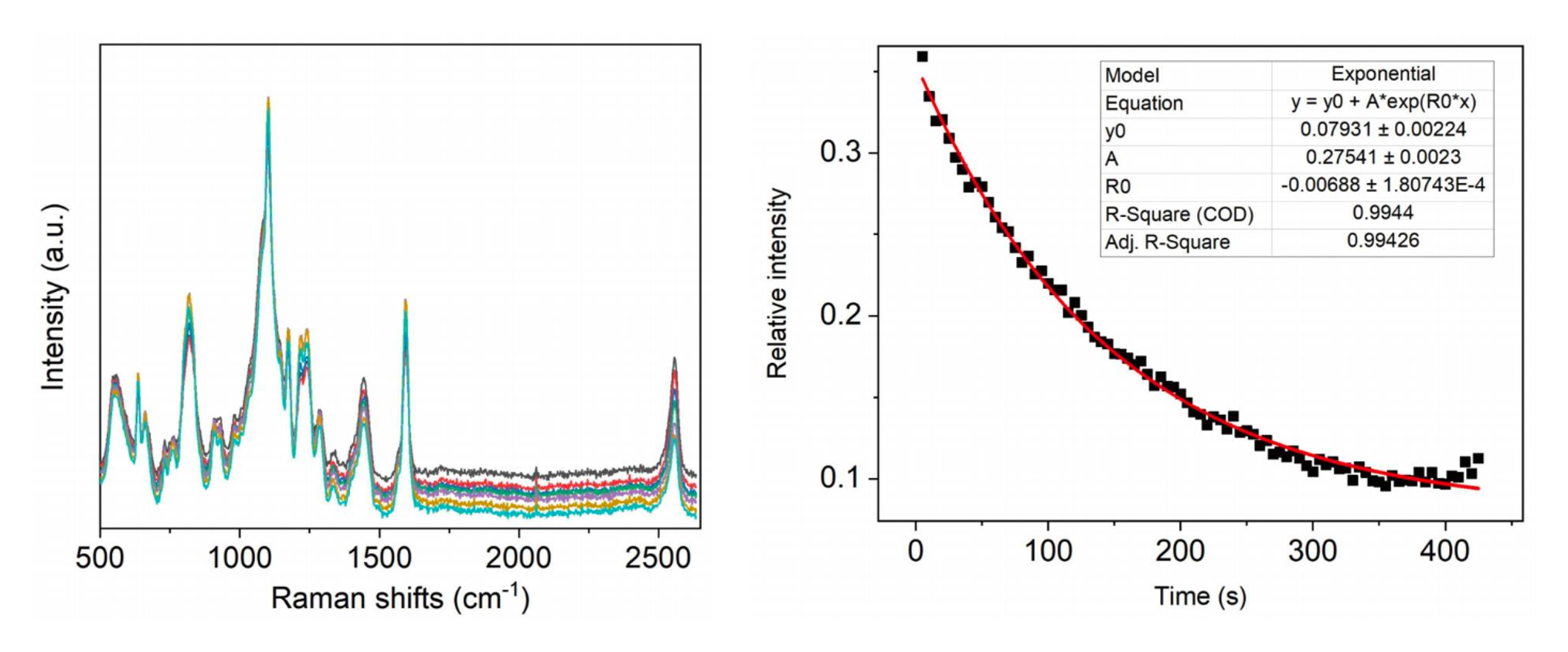

Reaction Kinetics
Track spectral changes during a reaction and derive kinetic parameters from time-resolved measurements and integrated curve fitting.
Extended Techniques

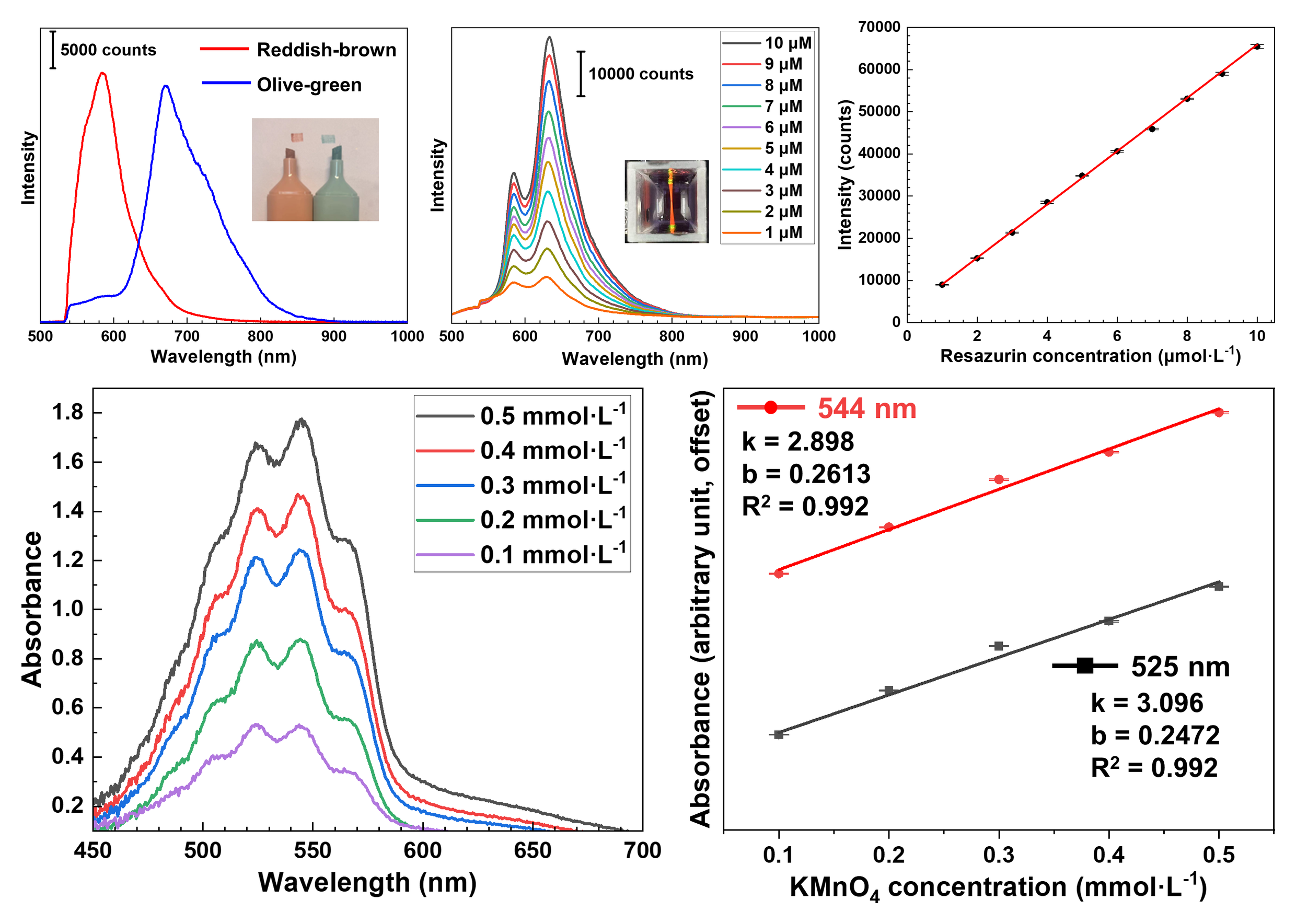

Multimodal Spectroscopy
Extend laboratory work to configurable fluorescence and absorption spectroscopy modules for concentration analysis and cross-technique learning.
Specifications
Technical specifications and available module configurations for the JAYITEC EduRaman Pro educational spectroscopy platform.
Functions & Modules
Raman Spectroscopy
Standard
Bright-Field Microscopy
Standard
Absorption Spectroscopy
Optional module
Fluorescence Spectroscopy
Optional module
Grating Configuration
Switchable dual gratings
Wavelength Calibration
Standard
Available Excitation Wavelengths
532 nm, 633 nm or 785 nm, depending on the selected configuration.
Gratings
1200 grooves/mm and 150 grooves/mm (532 nm configuration)
Spectrometer & Detector
Raman Spectral Range
Optical Spectral Range
Spectral Resolution
≤6 cm⁻¹
Spectral Accuracy
1200 grooves/mm grating: ±3 cm⁻¹
150 grooves/mm grating: ±1 nm
Detector
TEC-cooled CCD
Detector Array
1024 × 60 pixels
Pixel Size
24 × 24 μm
Cooling
15°C below ambient temperature
Signal-to-Noise Ratio
>2000:1
Maximum Exposure Time
>100 s
Imaging, System & Software
Illumination
LED white-light illumination
Imaging Mode
Simultaneous laser focusing and bright-field observation
Dimensions
52 × 28 × 13 cm
Weight
15 kg
Operating System
Windows 10 or later
Interface
USB 2.0
Software
EduRaman teaching software
Included Teaching Support
Calibration guidance, Raman acquisition guidance, optical-path demonstrations, lesson plans and training videos

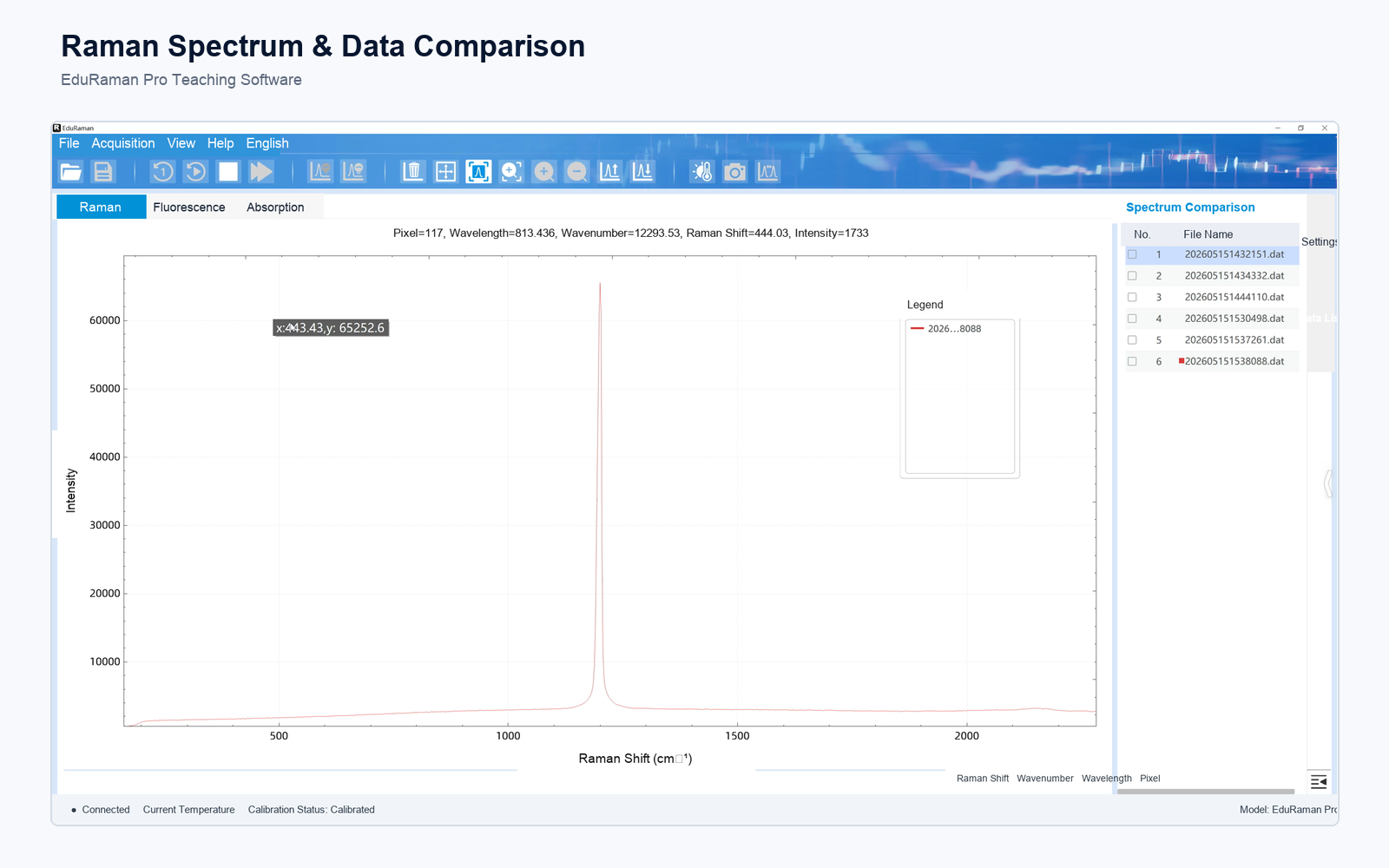

Software

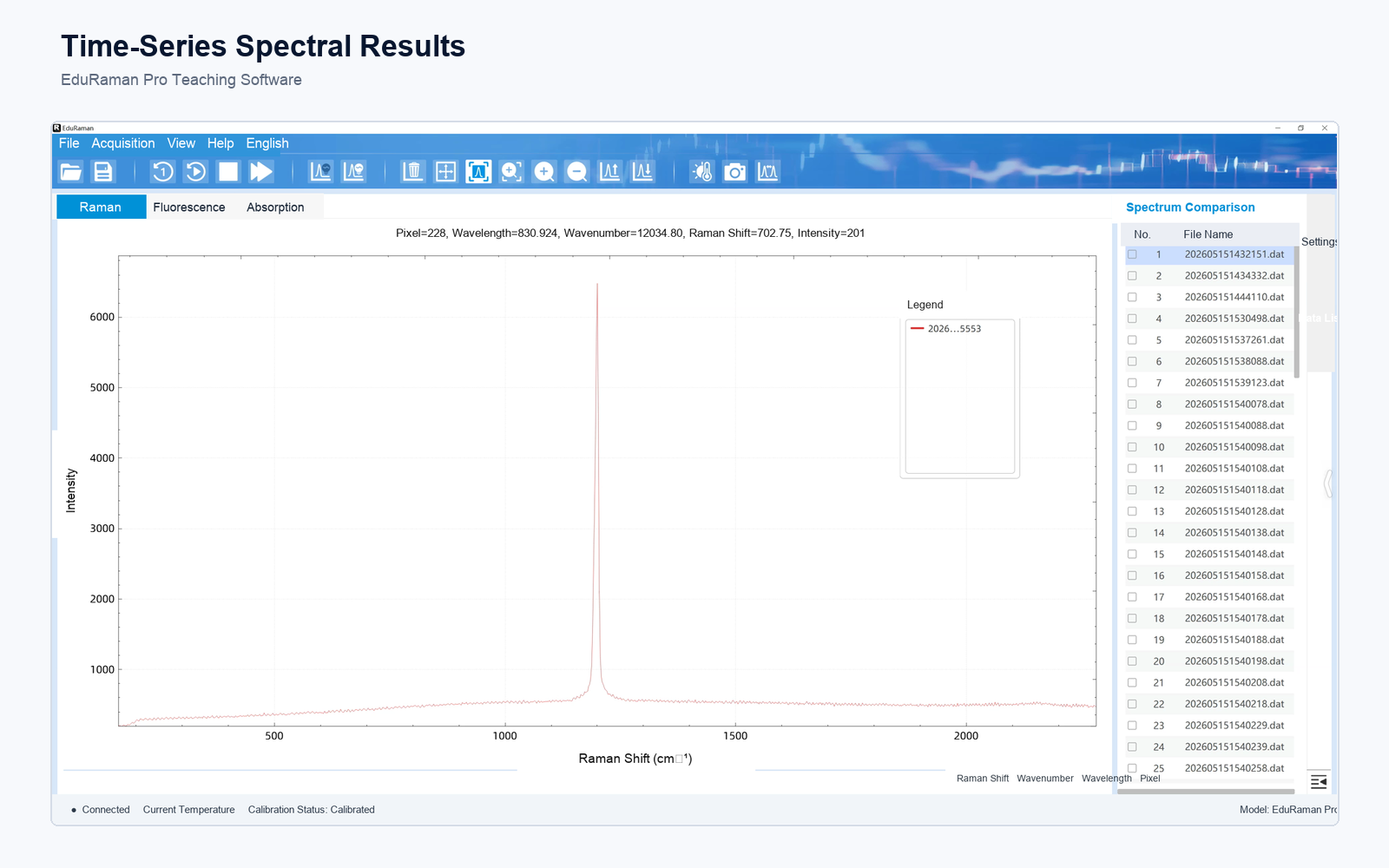

Integrated Software for Spectroscopy Teaching
EduRaman software brings Raman acquisition, bright-field imaging and configurable fluorescence and absorption measurements into one teaching-oriented interface. Guided workflows support calibration, spectral acquisition, visualization and data analysis.

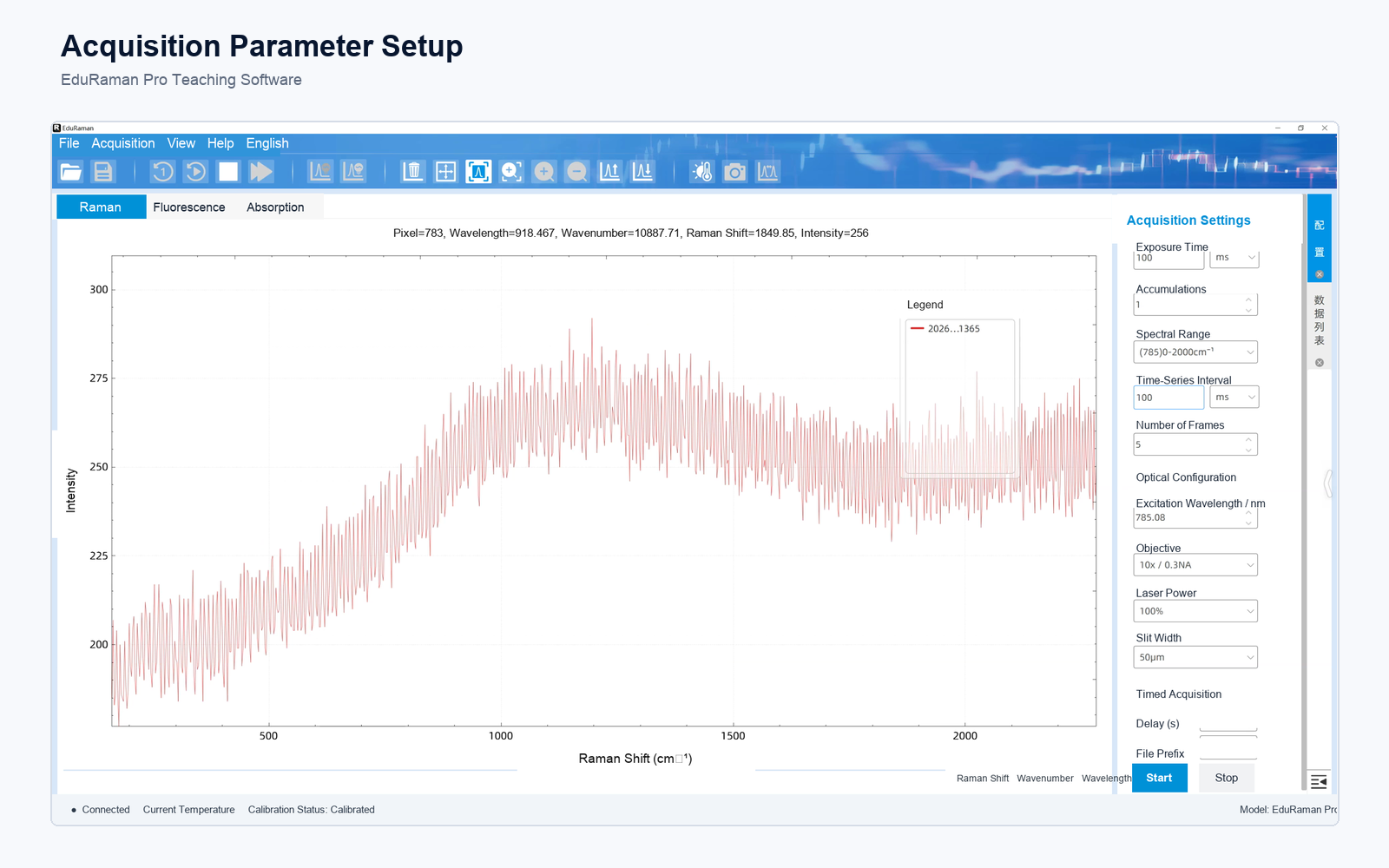

Guided Spectral Acquisition
Step-by-step workflows for calibration, parameter setup and spectral measurement.
Multimodal Operation
Access Raman, fluorescence, absorption and imaging functions within one software environment.

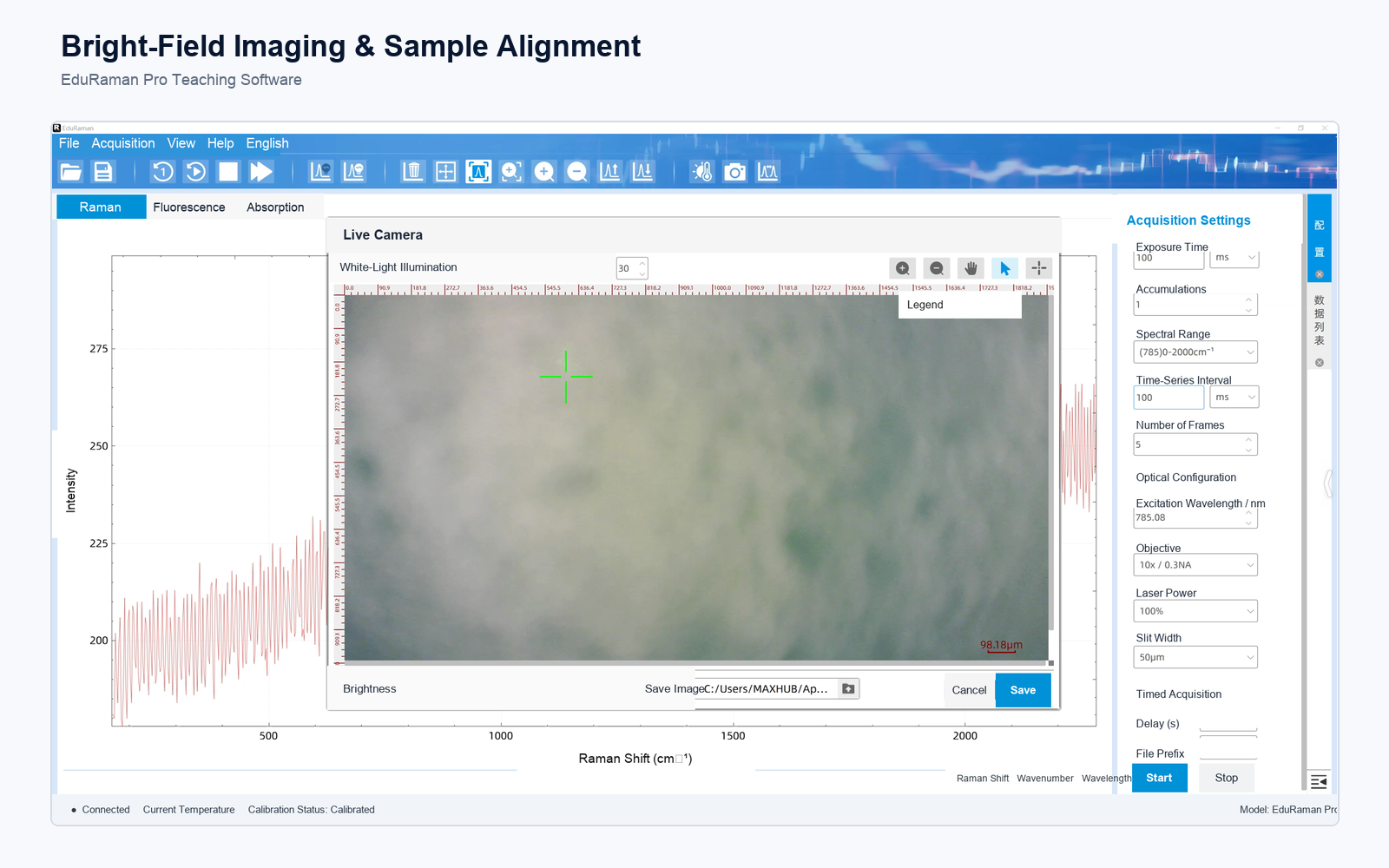

Real-Time Visualization
View spectra, imaging results and time-series measurements during experiments.
Teaching Resources
Built-in guidance and learning materials support classroom demonstrations and independent laboratory work.
Video Demonstrations
Explore the EduRaman Pro platform through product introductions, practical Raman spectroscopy tutorials and open-optical-path teaching demonstrations.
Meet EduRaman Pro
Raman Spectroscopy Tutorial
Making Raman Spectroscopy Visible
JAYITEC
JAYITEC draws on the research strengths of Xiamen University and Tan Kah Kee Innovation Laboratory in Raman spectroscopy, electrochemistry and energy materials. Supported by a multidisciplinary team of engineers and researchers, the company integrates instrument design, R&D, manufacturing, sales and technical service to develop high-end scientific and educational instruments for energy materials, biomedicine, industrial inspection and application-specific laboratory workflows.
