VECVERSE @Pette Mini + Pette Hub
Smart Pipetting, Ready When You Are
A compact electronic pipetting system designed for intuitive, motorized liquid handling. @Pette Mini combines touchscreen control, multiple pipetting modes and a lightweight 99 g design, while the optional Pette Hub provides a dedicated platform for charging and connected device management.
- Lightweight 99 g Design
- Smart, Intuitive Touchscreen
- Precise, Effortless Repeat Dispensing
- Optional Smart Charging & Connectivity Hub
Product Highlights
Lightweight by Design
The compact 99 g body is designed for comfortable handling during routine and repetitive laboratory workflows.
Intuitive Touchscreen Control
Access volume, speed and operating-mode settings directly through the intuitive touchscreen.
Multiple Pipetting Modes
Switch between standard pipetting, repeat dispensing and reverse pipetting to support different liquid-handling tasks.
Optional Pette Hub
Add a dedicated docking platform for convenient charging and, depending on configuration, expanded connectivity and device-management functions.
Designed Around Every Interaction
Take a closer look at the interface, operating controls, charging connection and internal engineering of @Pette Mini.

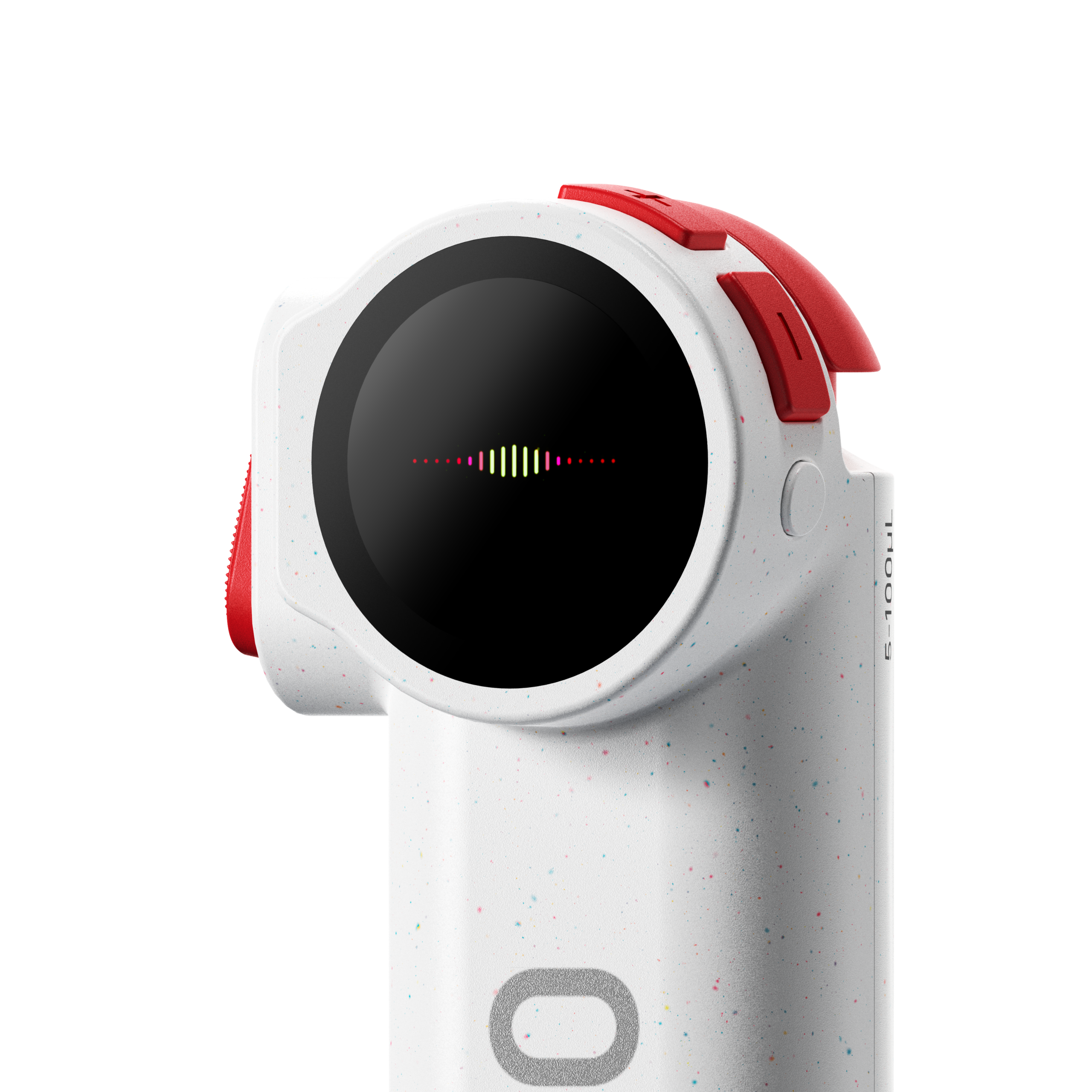

Voice-Enabled Interface
Compatible configurations provide access to selected voice-assisted functions through the integrated display.

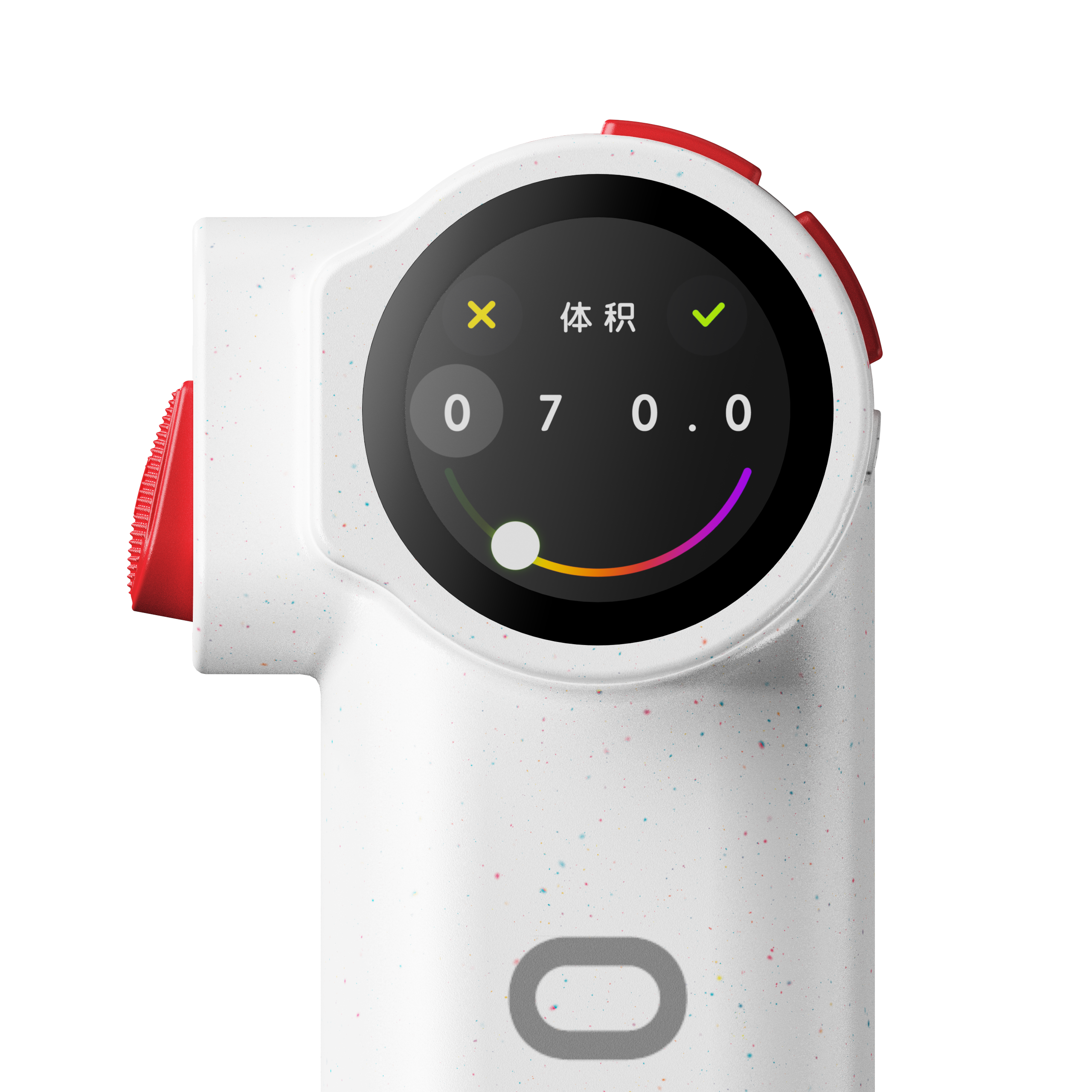

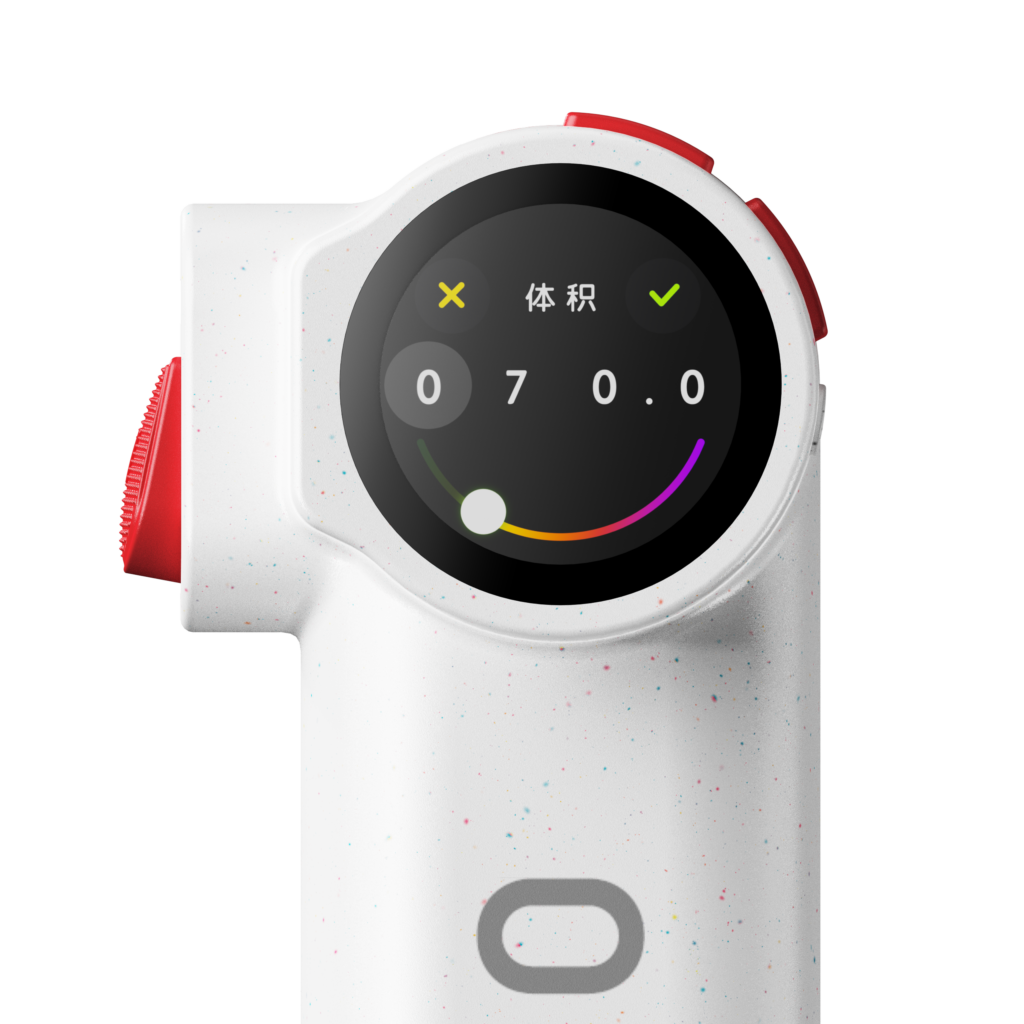

Precise Volume Adjustment
View and adjust the selected working volume directly on screen for clear and convenient parameter control.

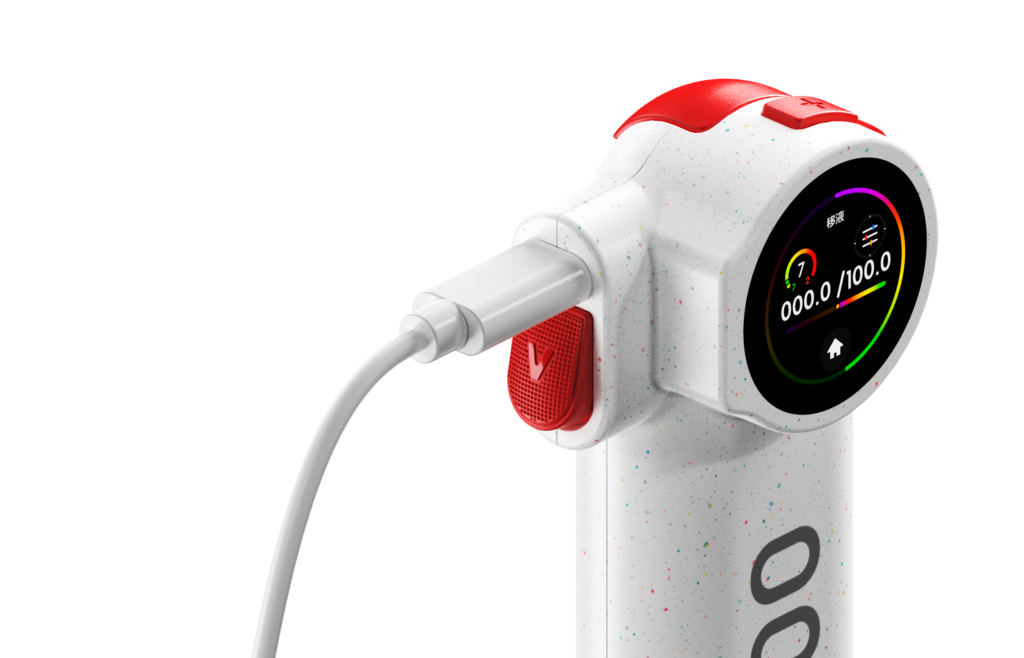

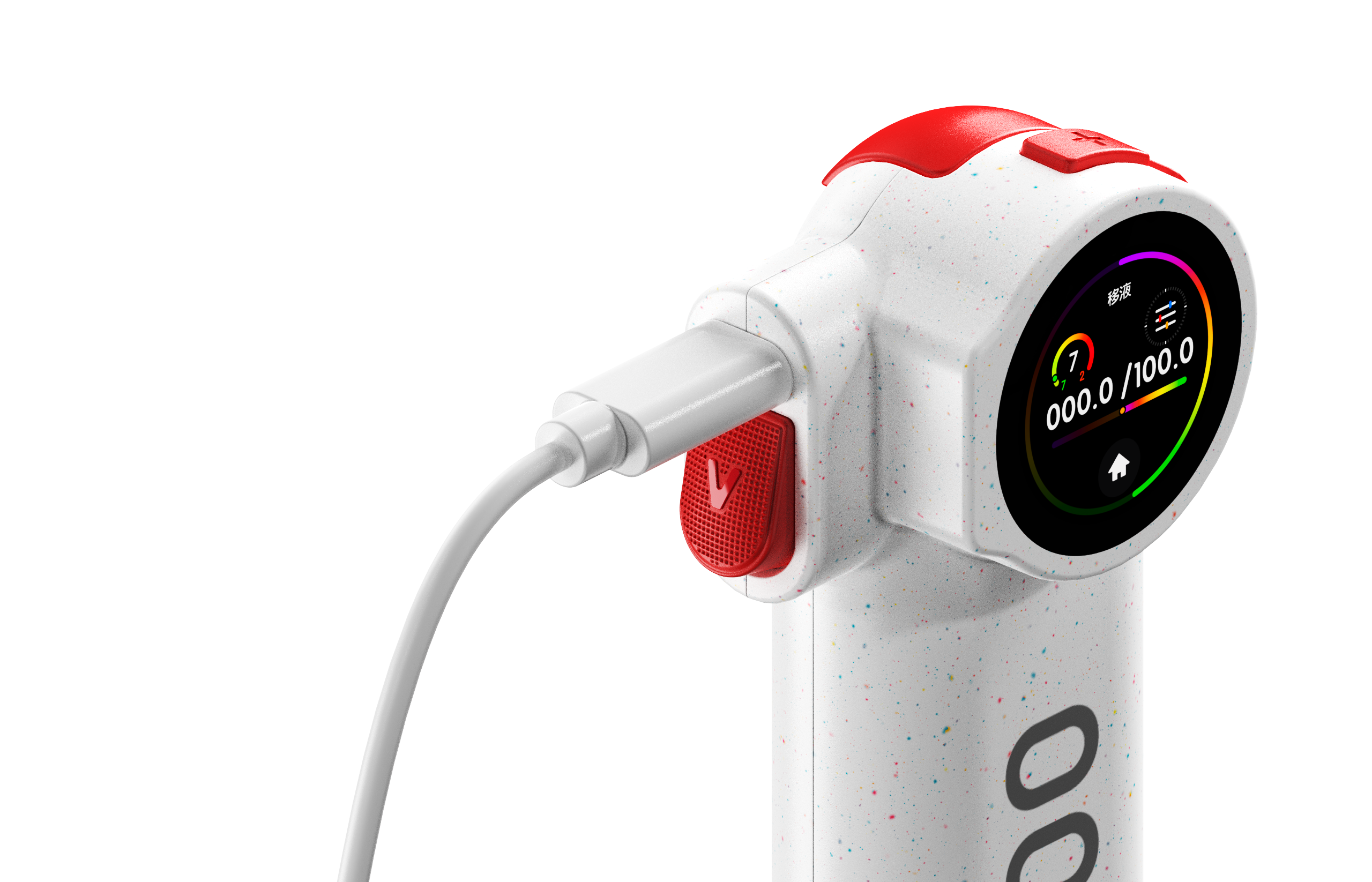

USB-C Charging
Connect the pipette directly through its USB Type-C port for convenient everyday charging.

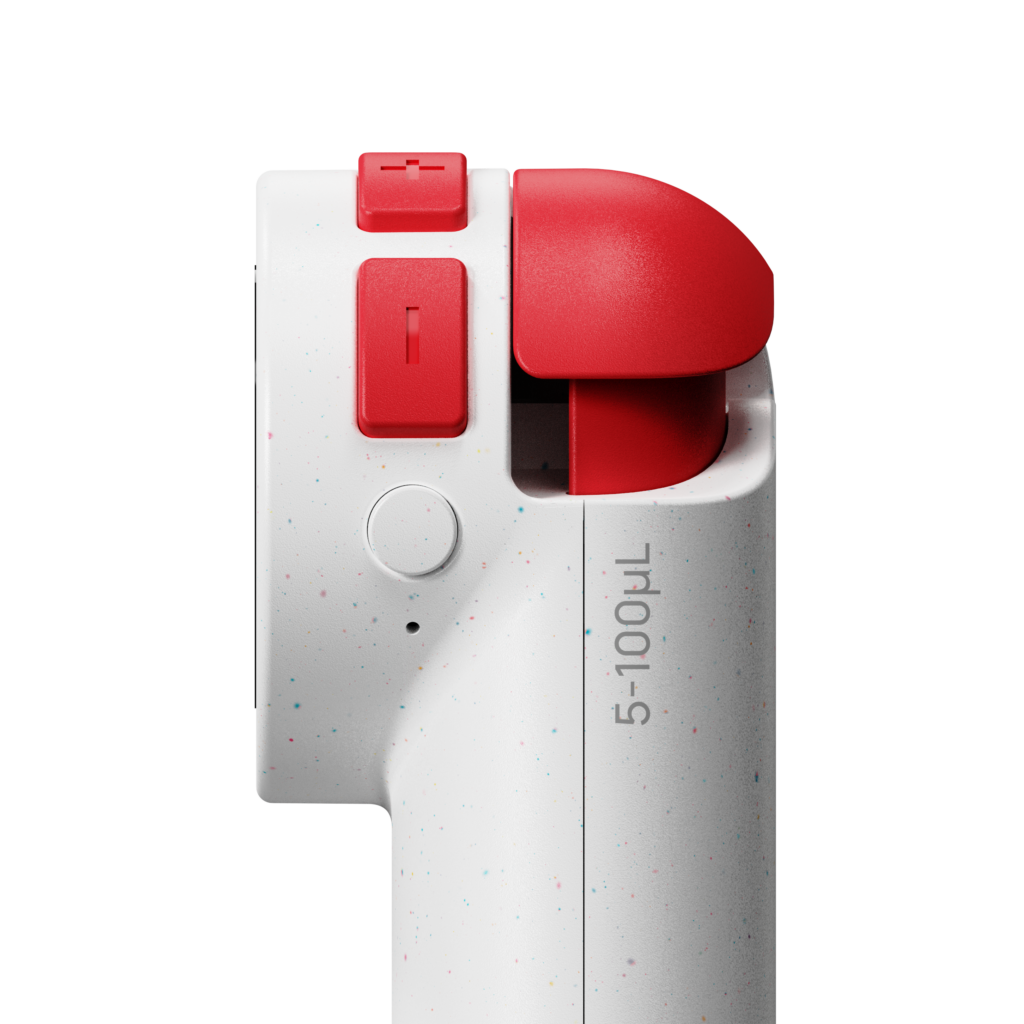

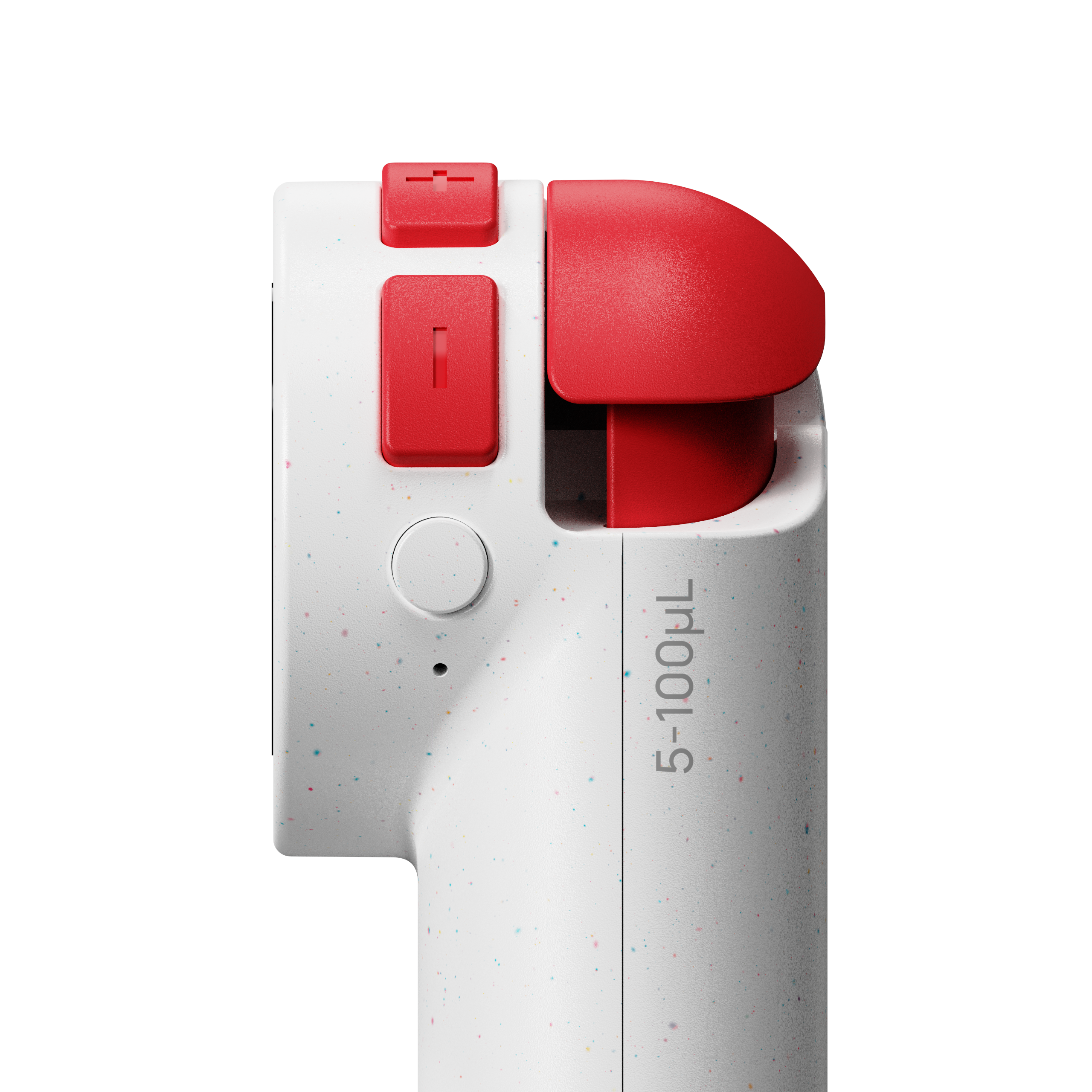

Trigger & Quick-Adjustment Controls
Control aspiration and dispensing through the trigger, with dedicated controls for faster volume adjustment.

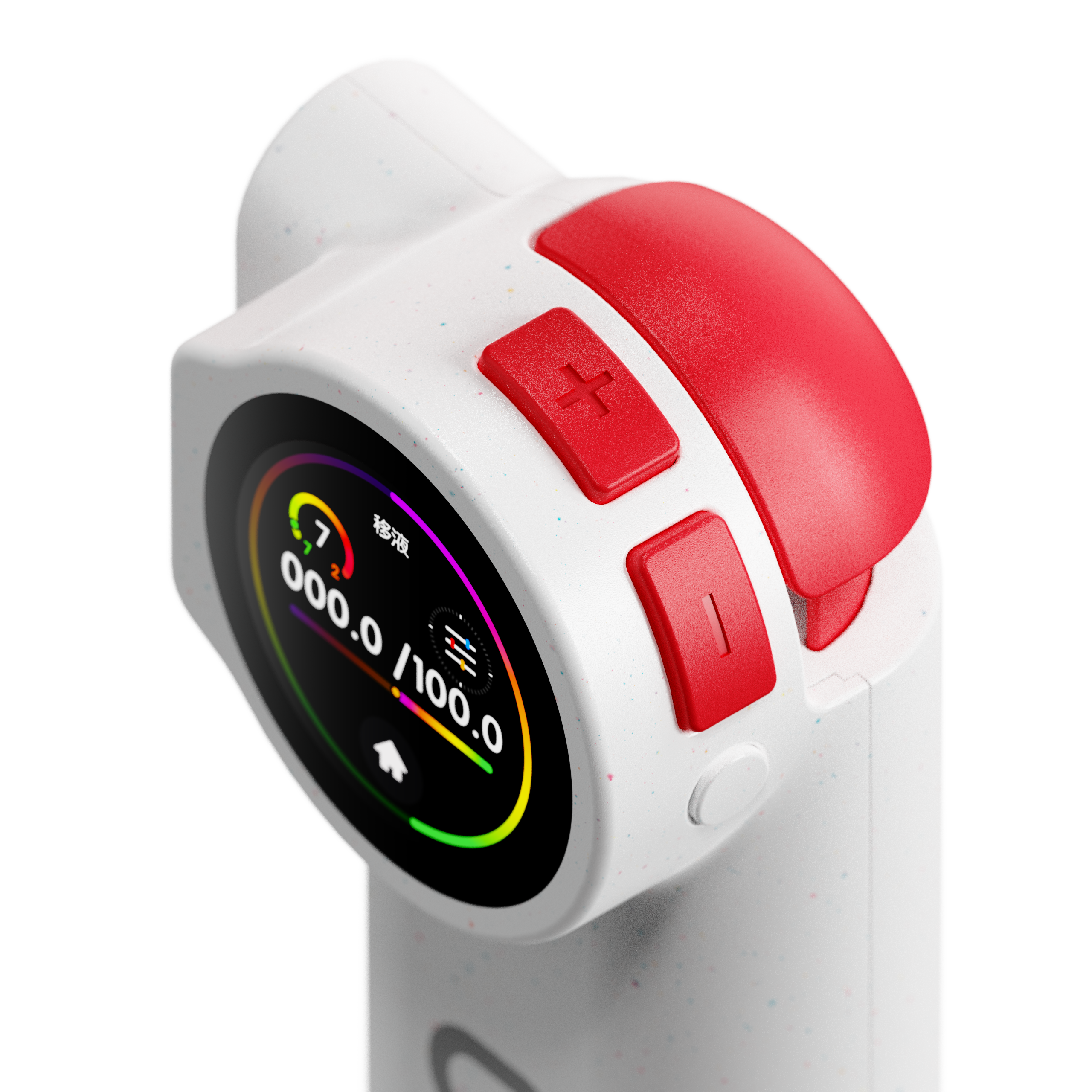

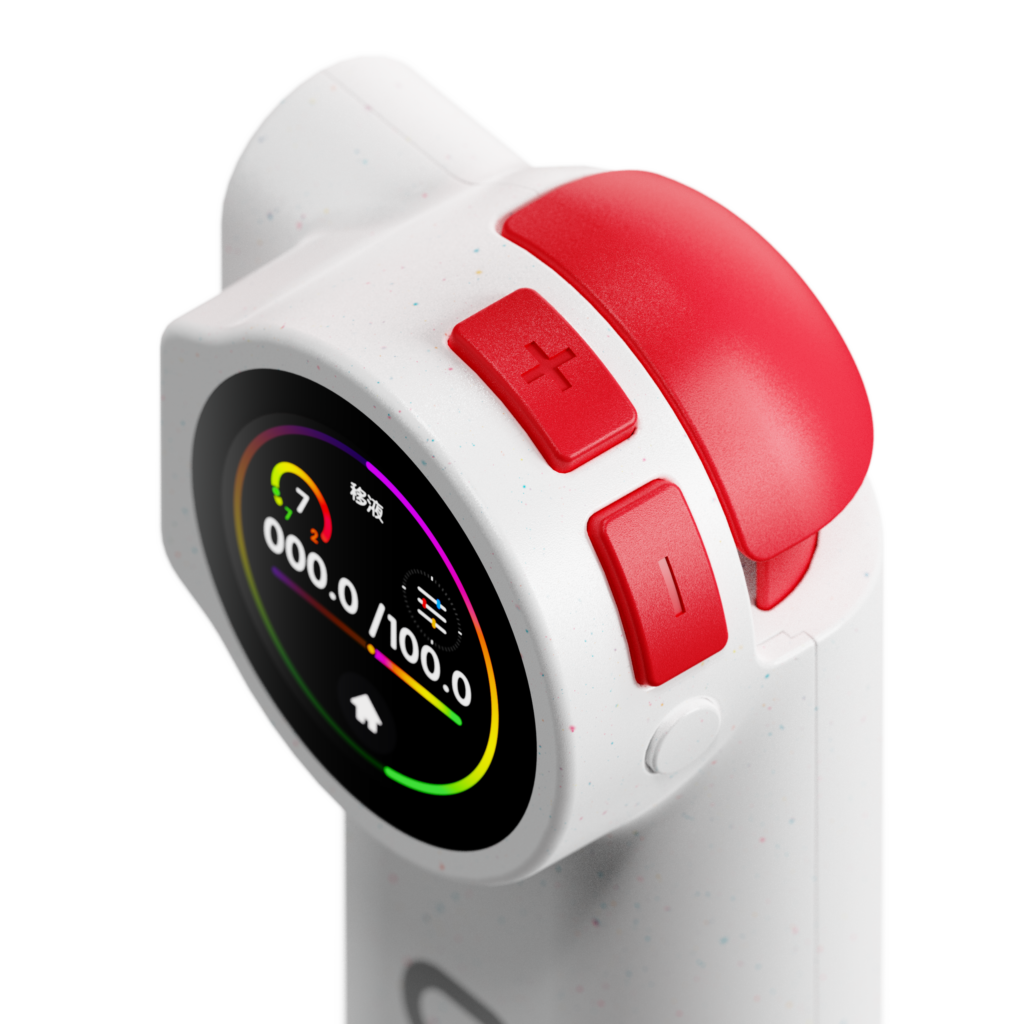

Intuitive Touchscreen Control
Select the operating mode and adjust volume, speed and other parameters through the integrated touchscreen.

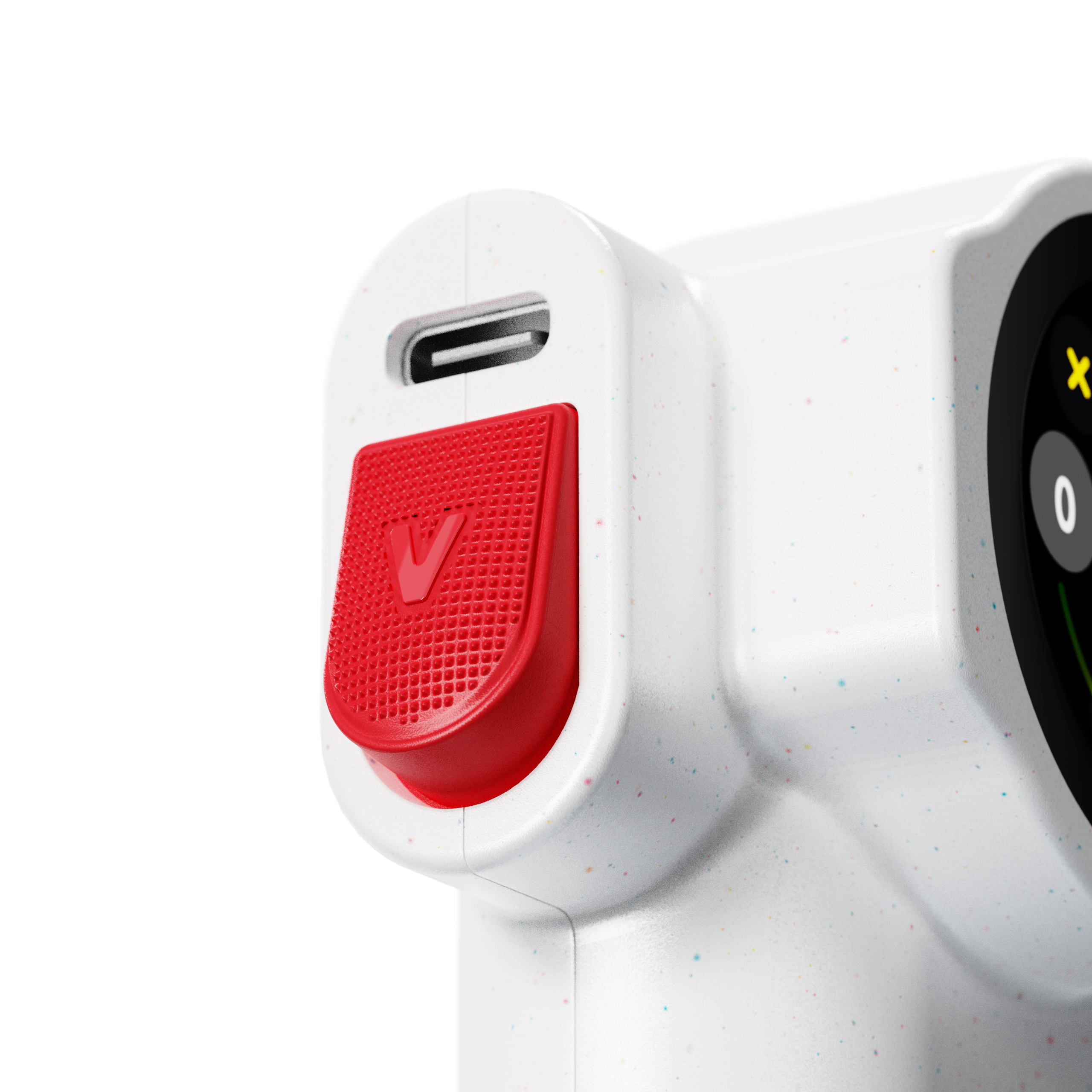

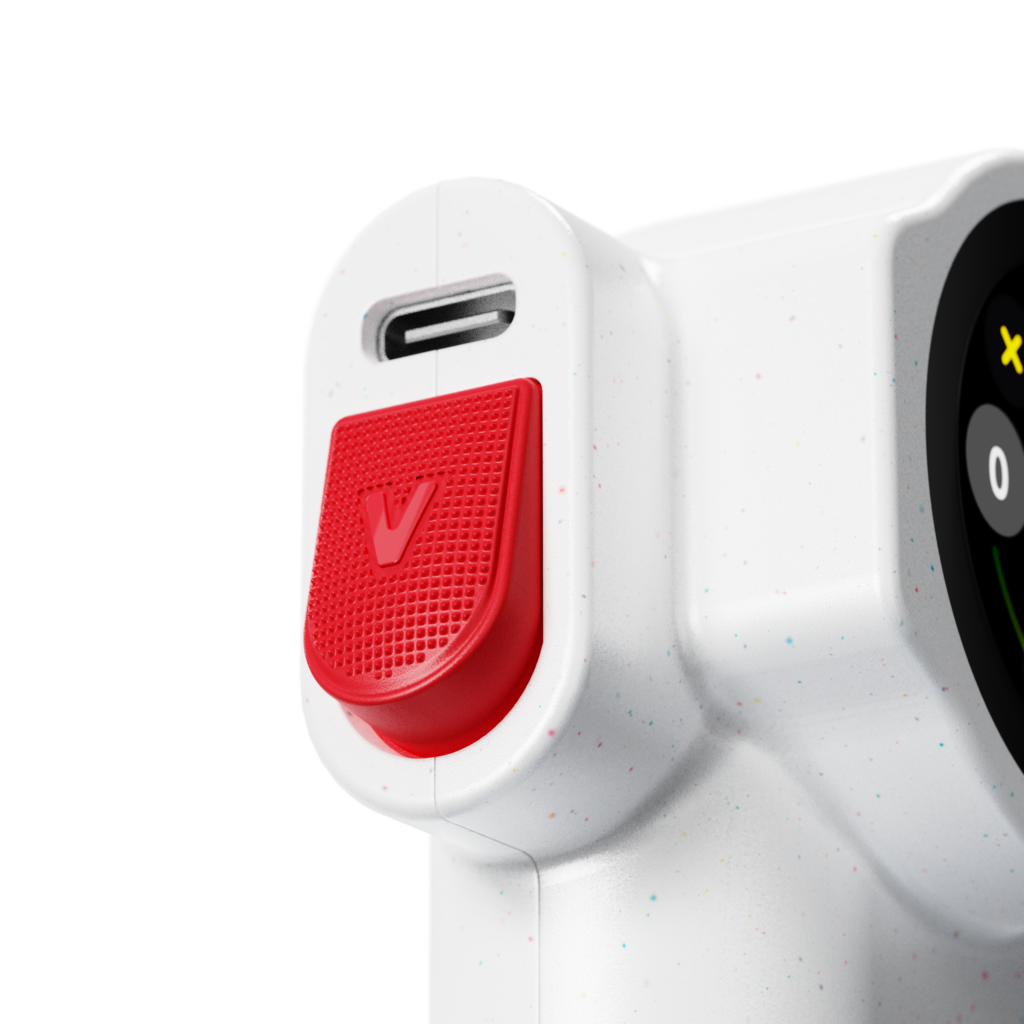

Electronic Tip Ejection
A dedicated electronic tip-ejection control helps reduce the force required during repetitive tip removal.

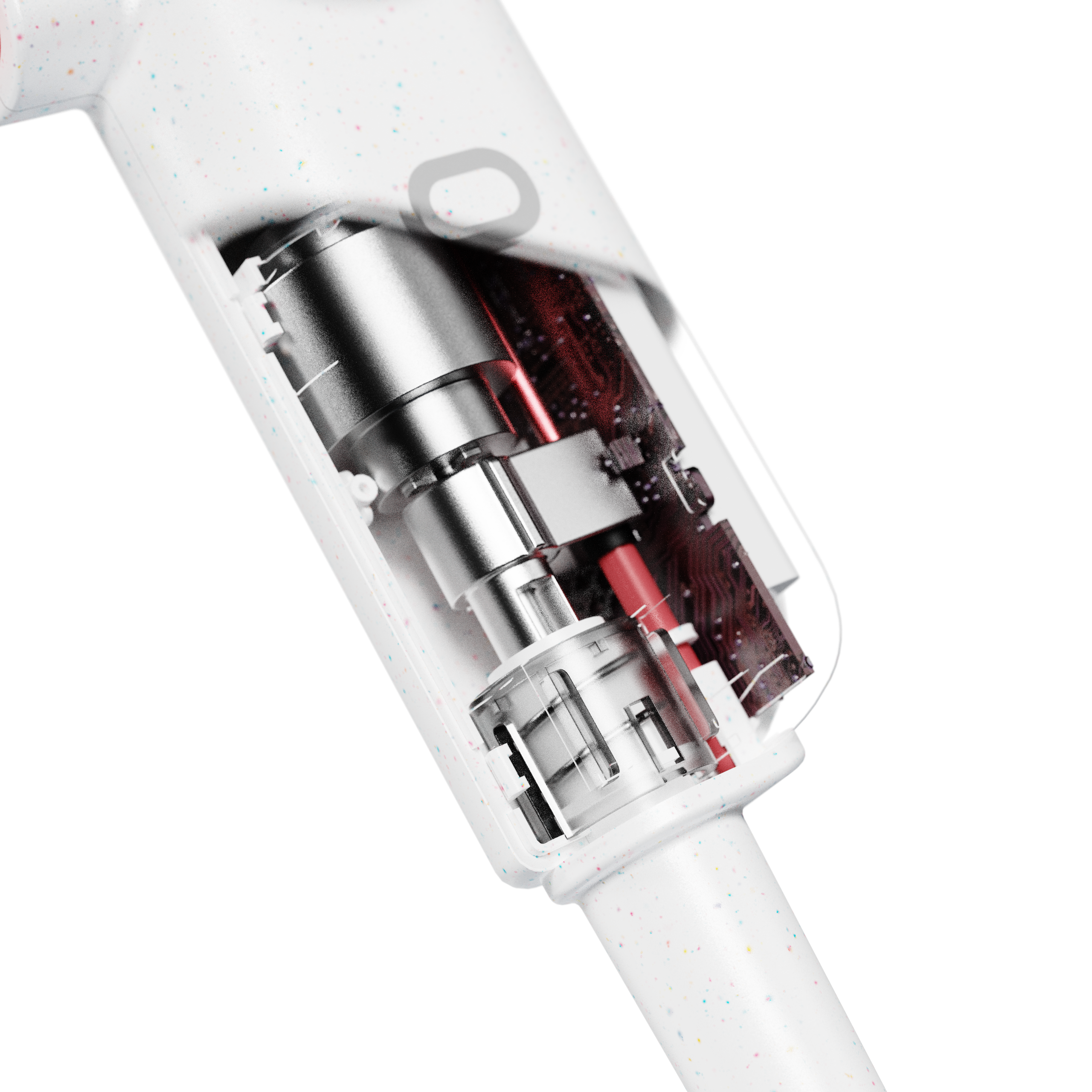

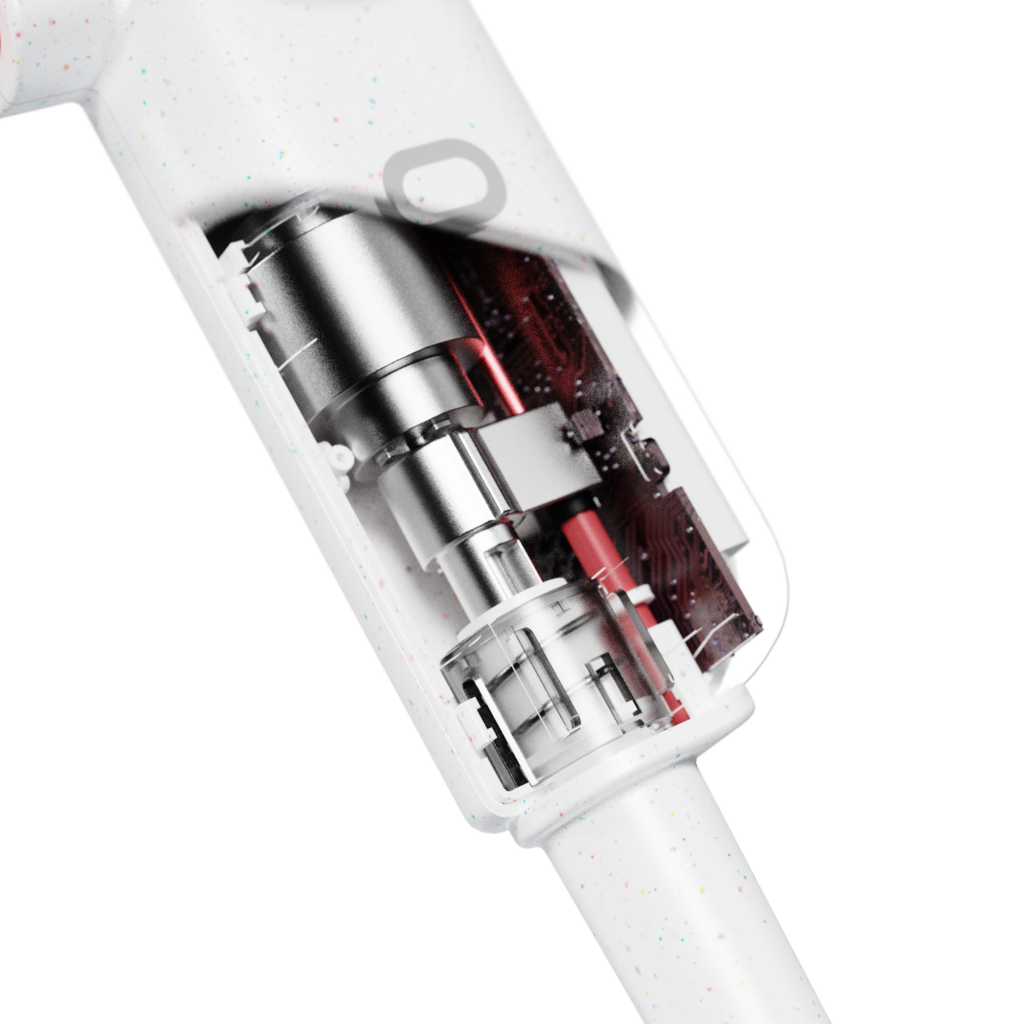

Precision Drive Mechanism
The compact motorized drive mechanism provides electronically controlled piston movement during aspiration and dispensing.

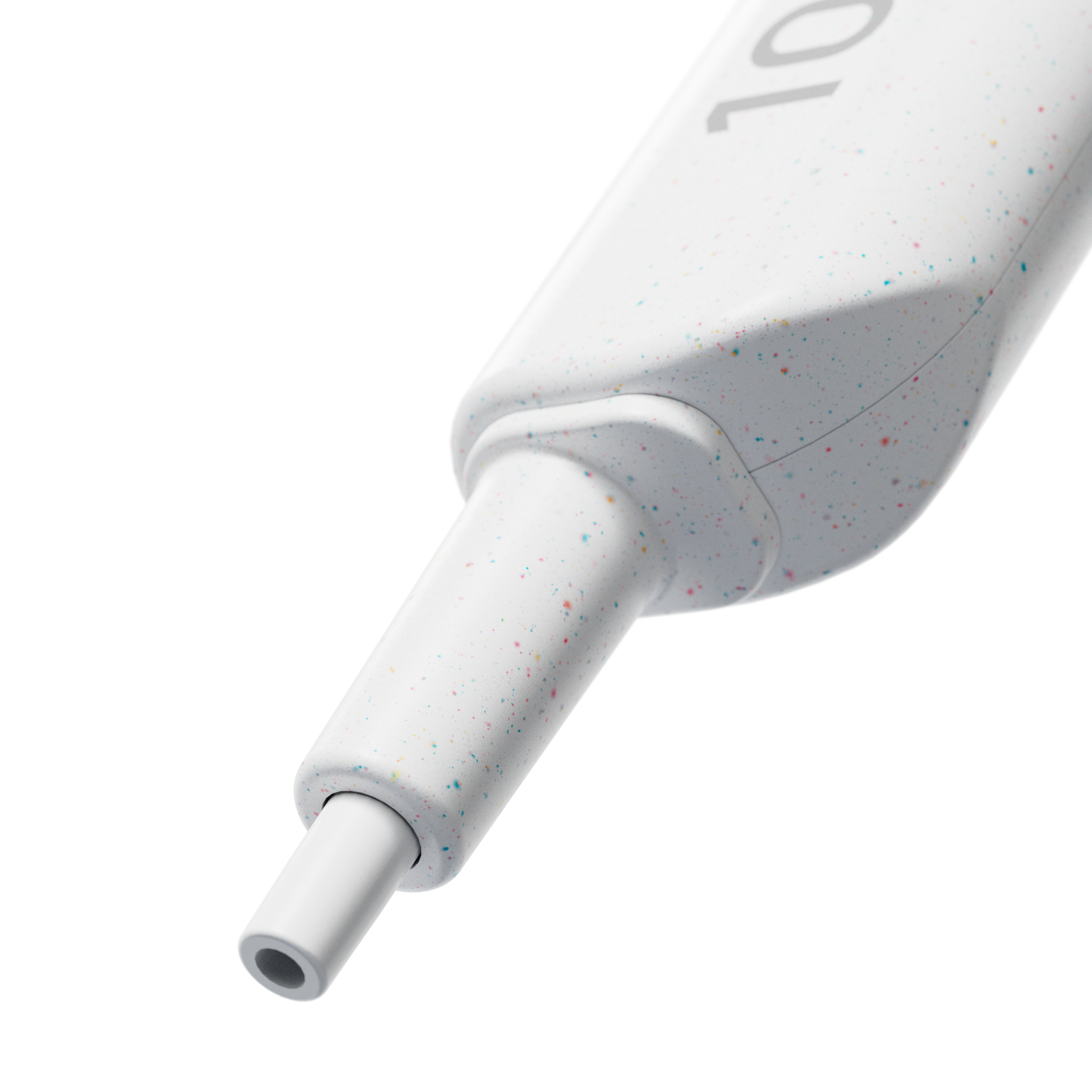

Pipette Shaft & Tip Cone
The streamlined lower assembly supports familiar tip fitting and everyday liquid-handling workflows.

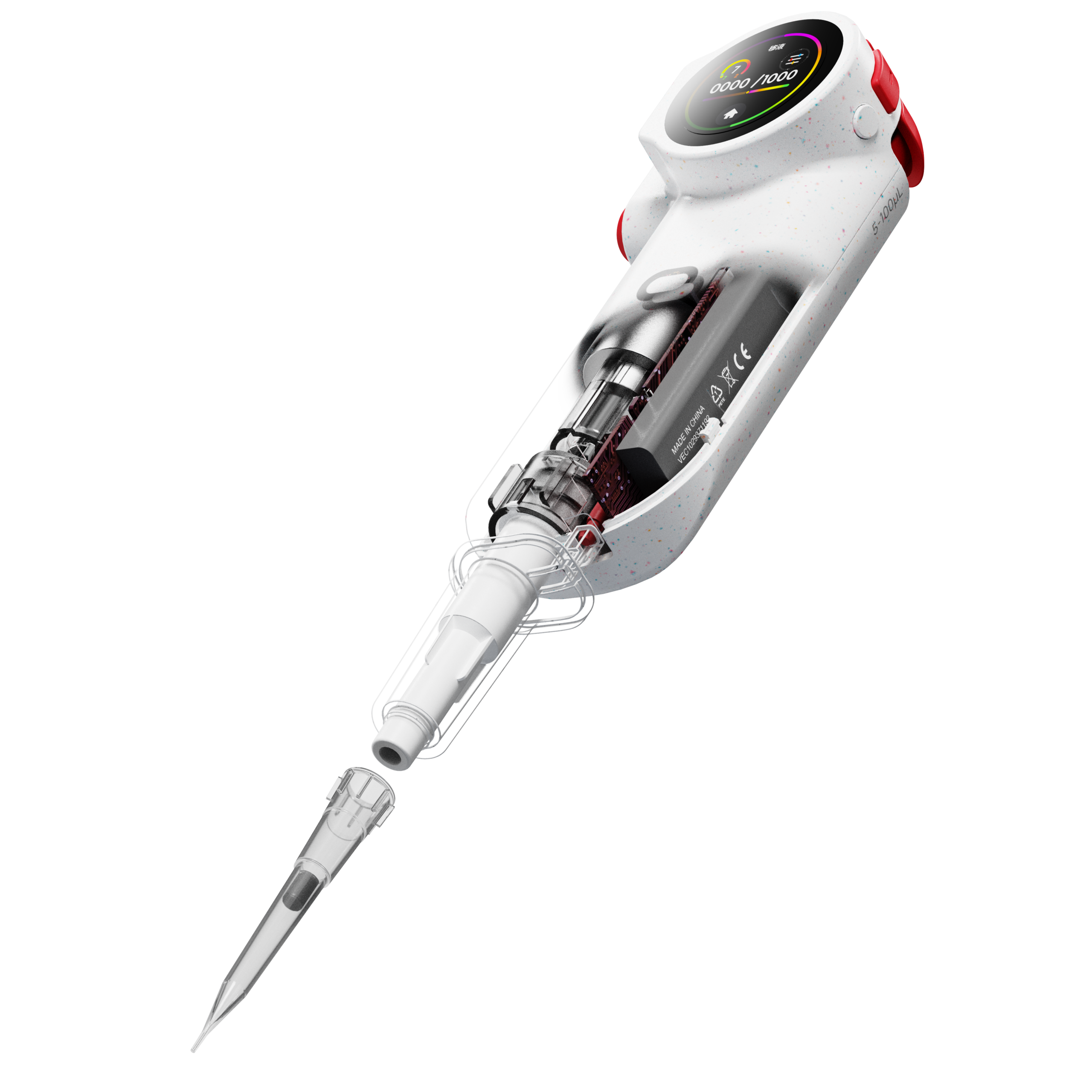

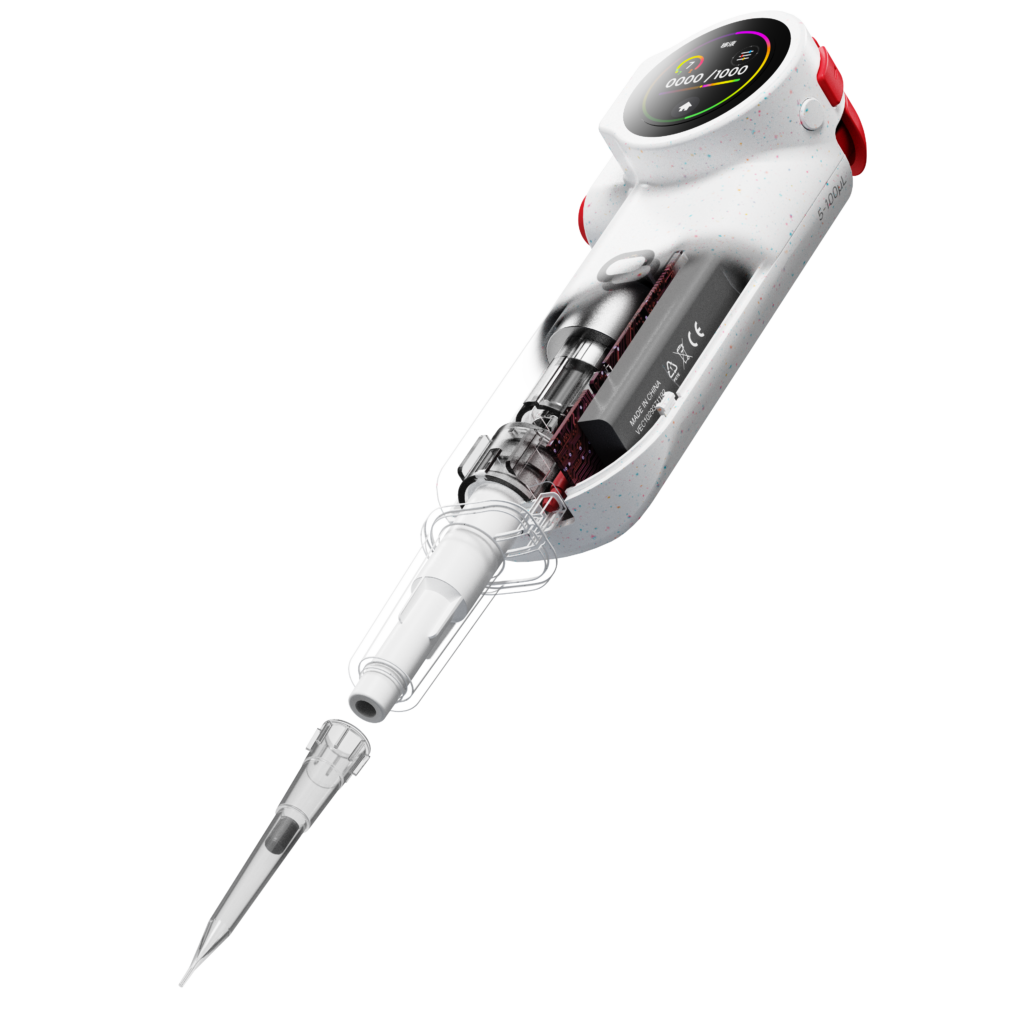

Engineered from Trigger to Tip
The internal cutaway reveals the compact integration of the controls, drive mechanism, piston assembly and pipette shaft.
Voice-assisted functions require network access. Language support and regional availability are subject to confirmation.
OPTIONAL ACCESSORY
Pette Hub
A Dedicated Home for @Pette Mini
Pette Hub is a purpose-built docking platform for @Pette Mini. It provides a convenient location for charging and storage, while the multifunction configuration adds connected device-management capabilities.
Pette Hub is available separately from @Pette Mini.

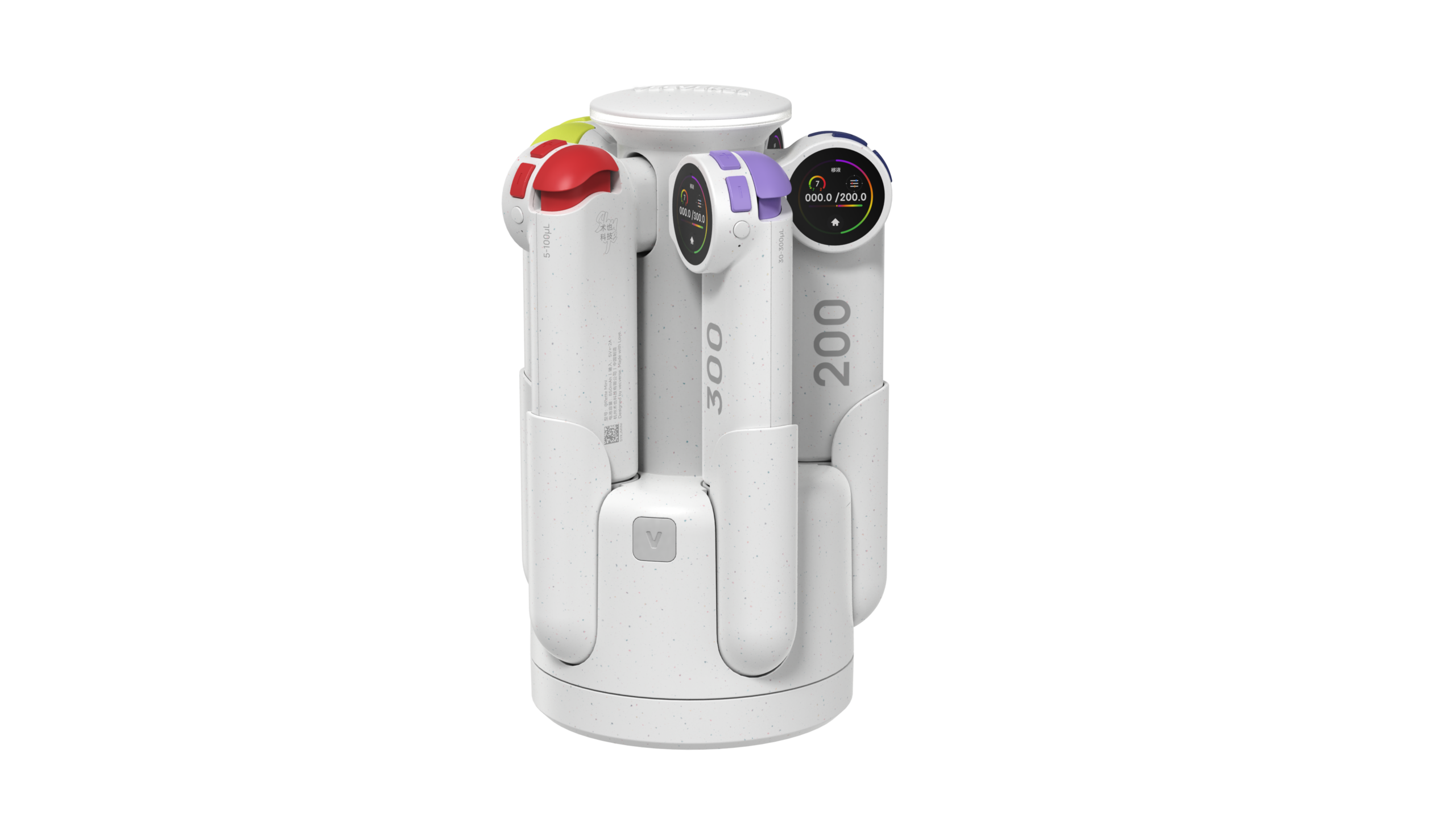

Pette Hub — Charging Version
A streamlined docking station designed for convenient charging and storage of @Pette Mini smart pipettes.
- Magnetic docking
- Dedicated charging positions
- RGB status indication
- Compact benchtop design

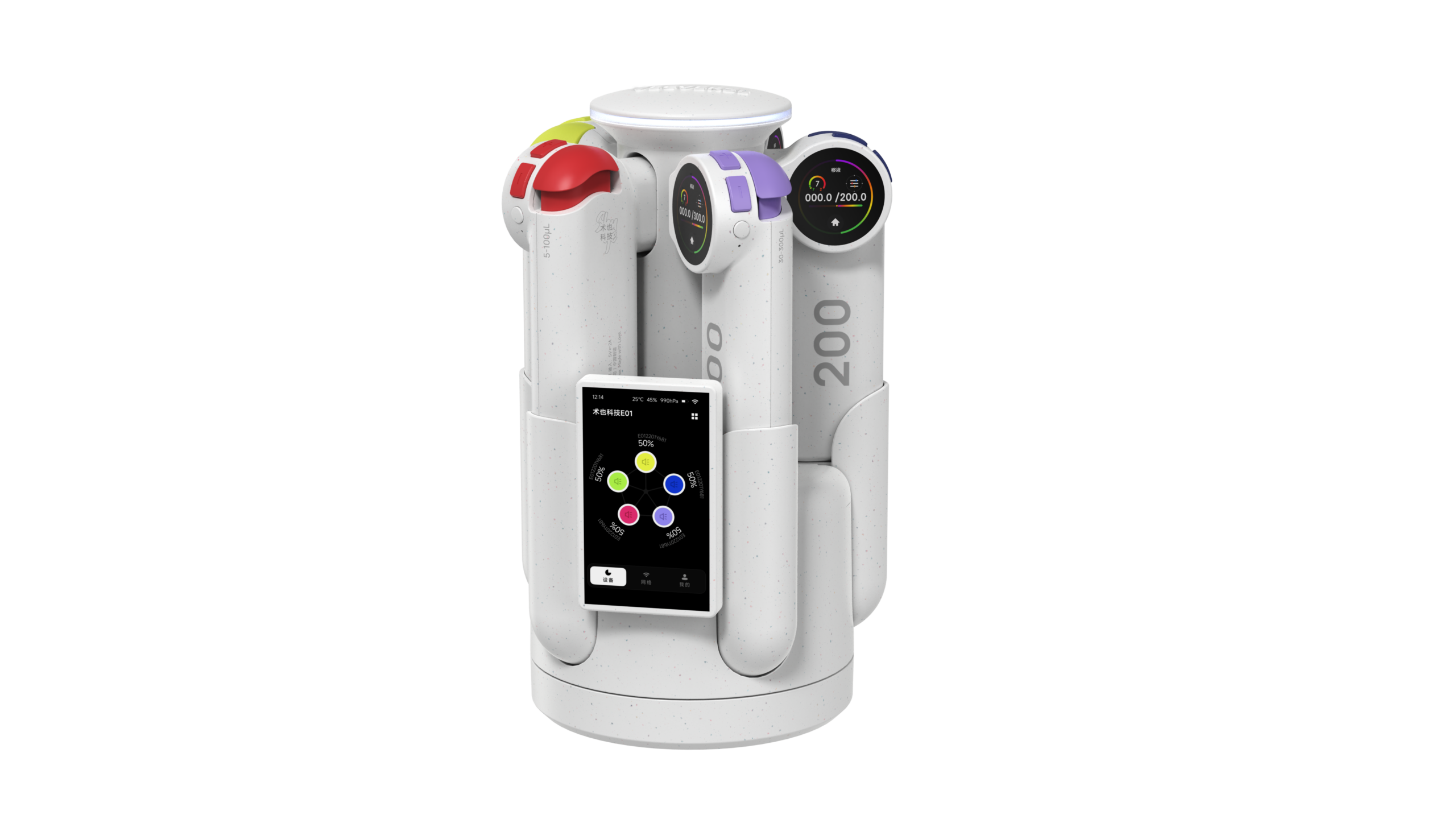

Pette Hub — Multifunction Version
An expanded smart hub combining charging with connected device-management capabilities.
- Magnetic docking and charging
- RGB status indication
- Network connectivity
- Compatible OTA-update workflows
- Built-in temperature, humidity and pressure monitoring
- Connected device-management functions
Pette Hub is a purpose-built docking platform for @Pette Mini. It provides a convenient location for charging and storage, while the multifunction configuration adds connected device-management capabilities.

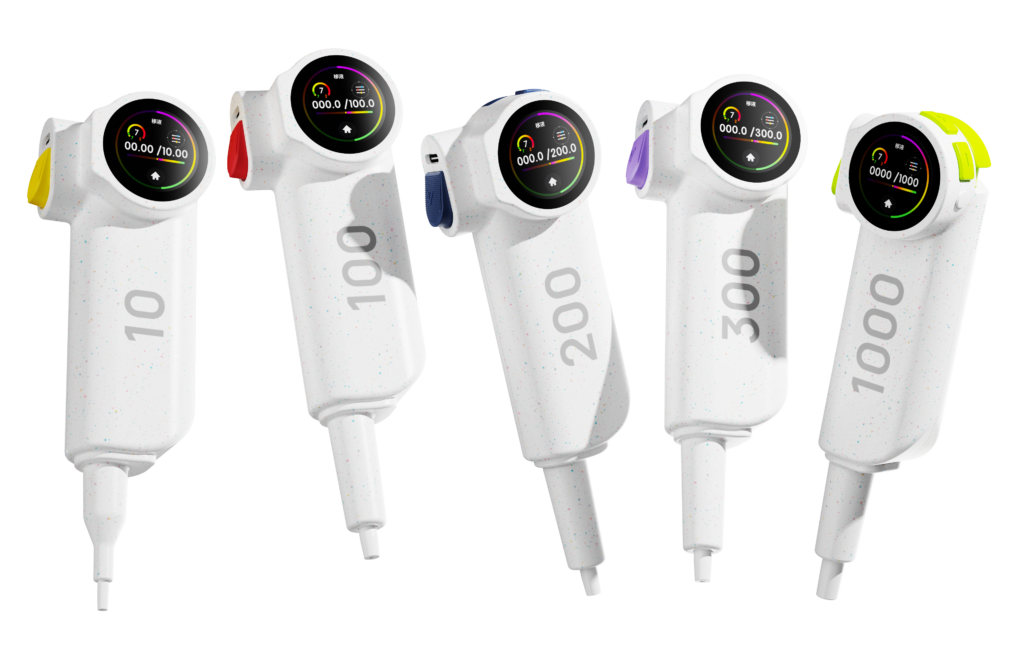

Five Models Across a Broad Volume Range
Choose the @Pette Mini model that best matches your liquid-handling requirements. Five variable-volume configurations collectively cover volumes from 0.5 to 1000 µL.

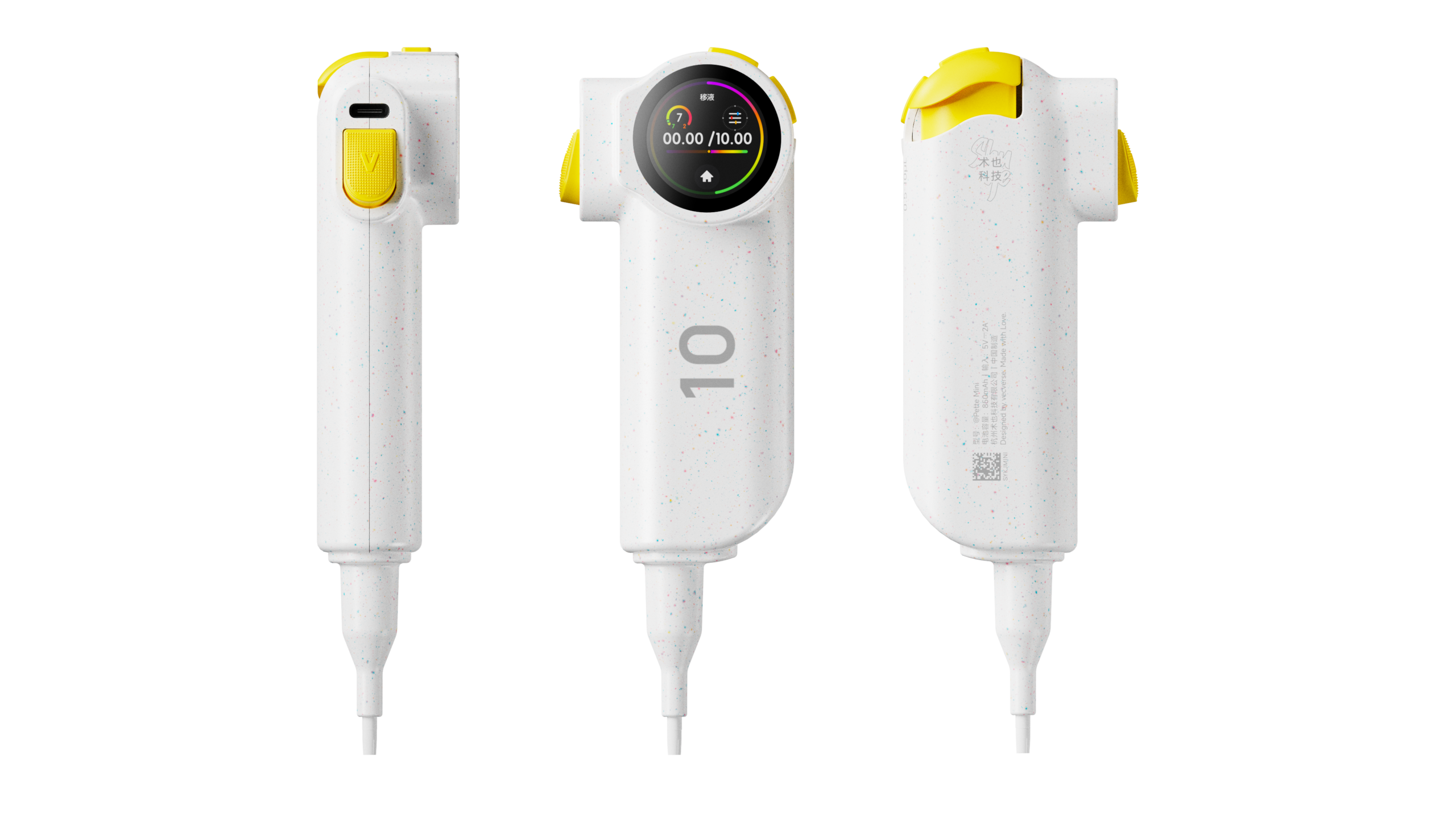

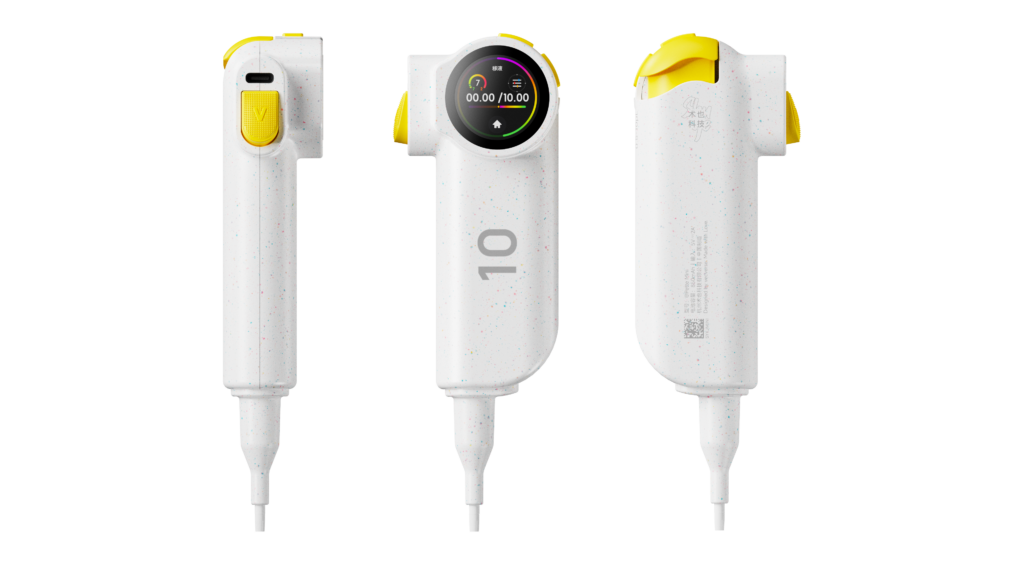

@Pette Mini 10 µL

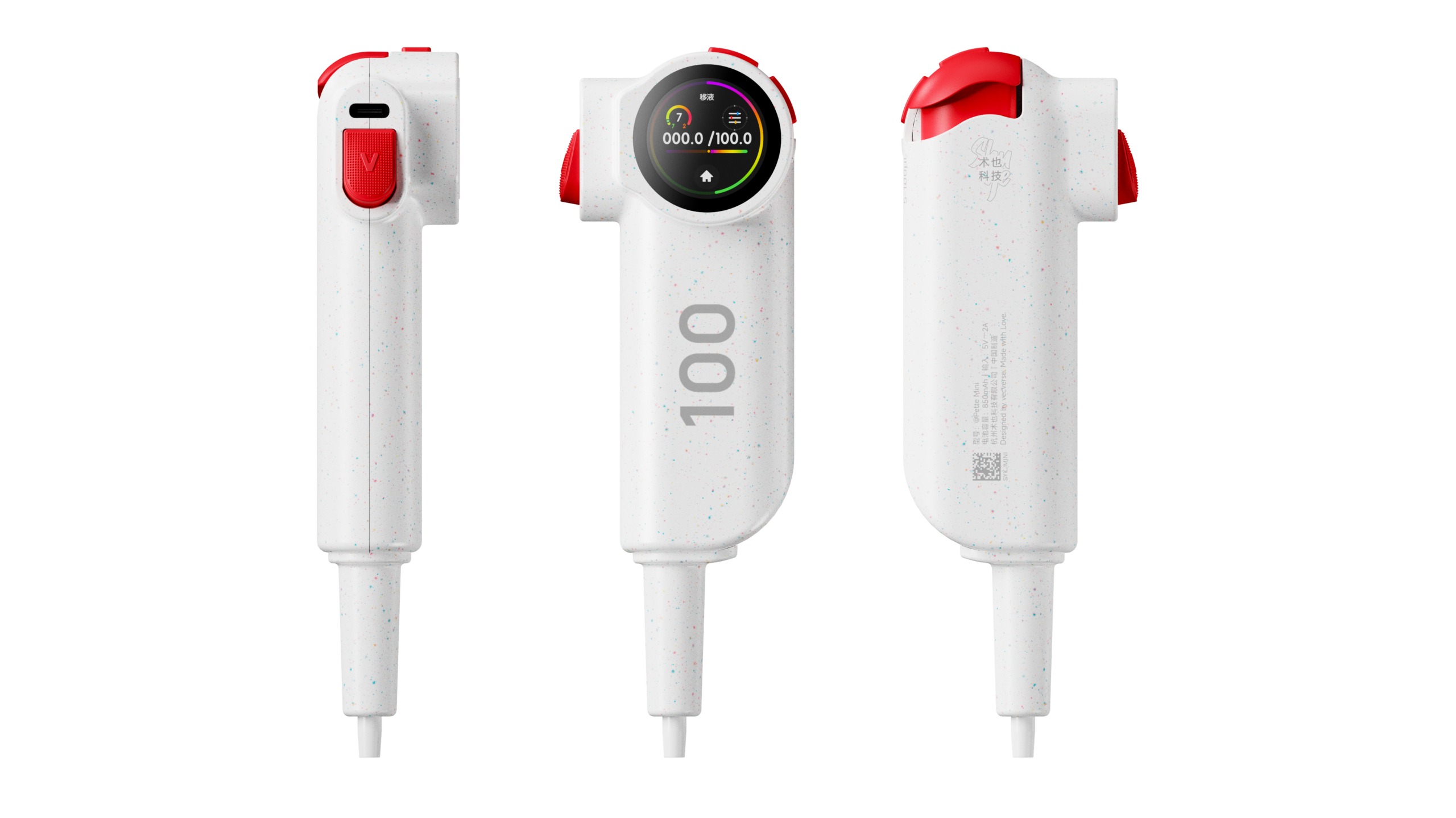

@Pette Mini 100µL

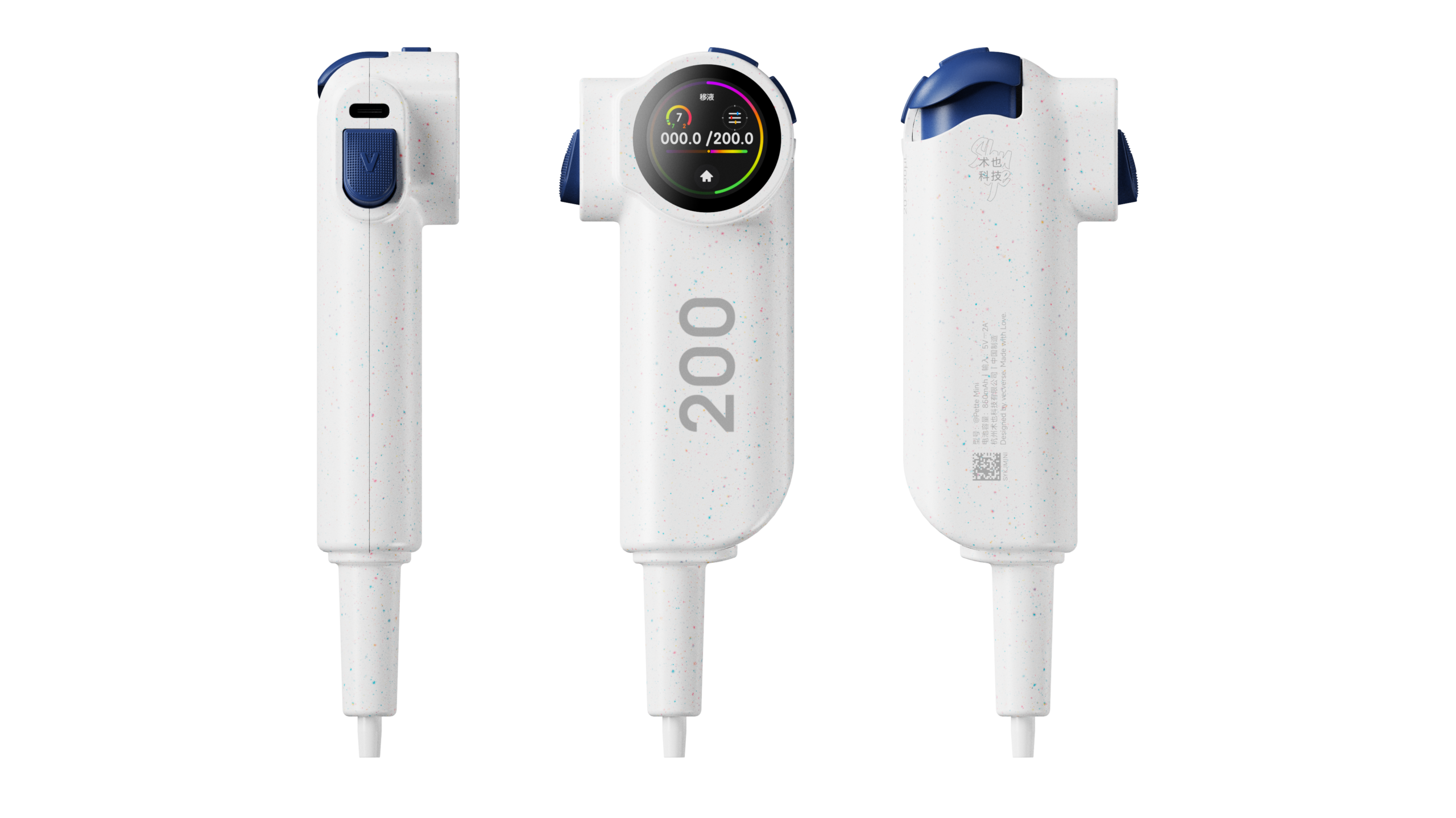

@Pette Mini 200 µL
@Pette Mini 300 µL

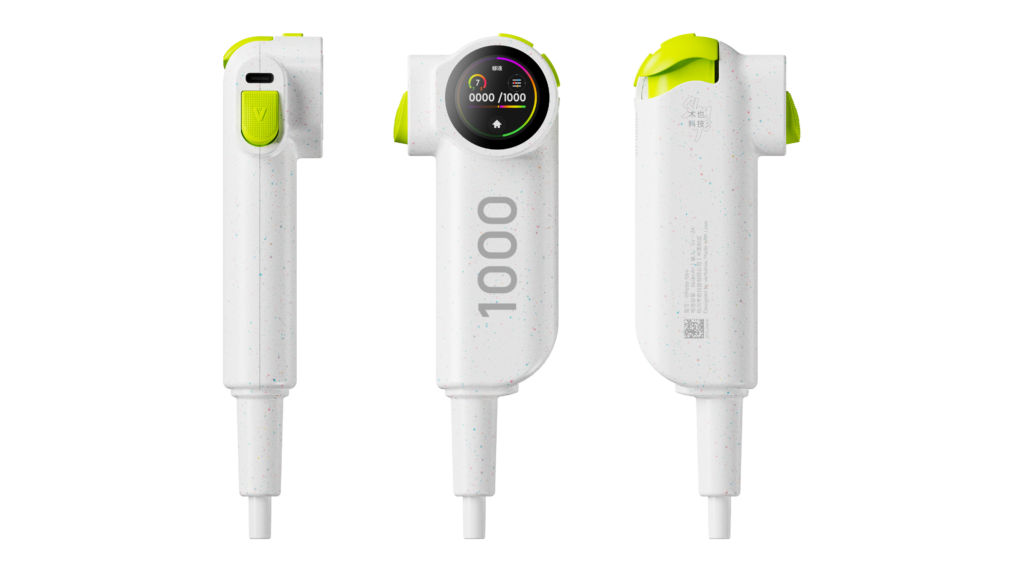

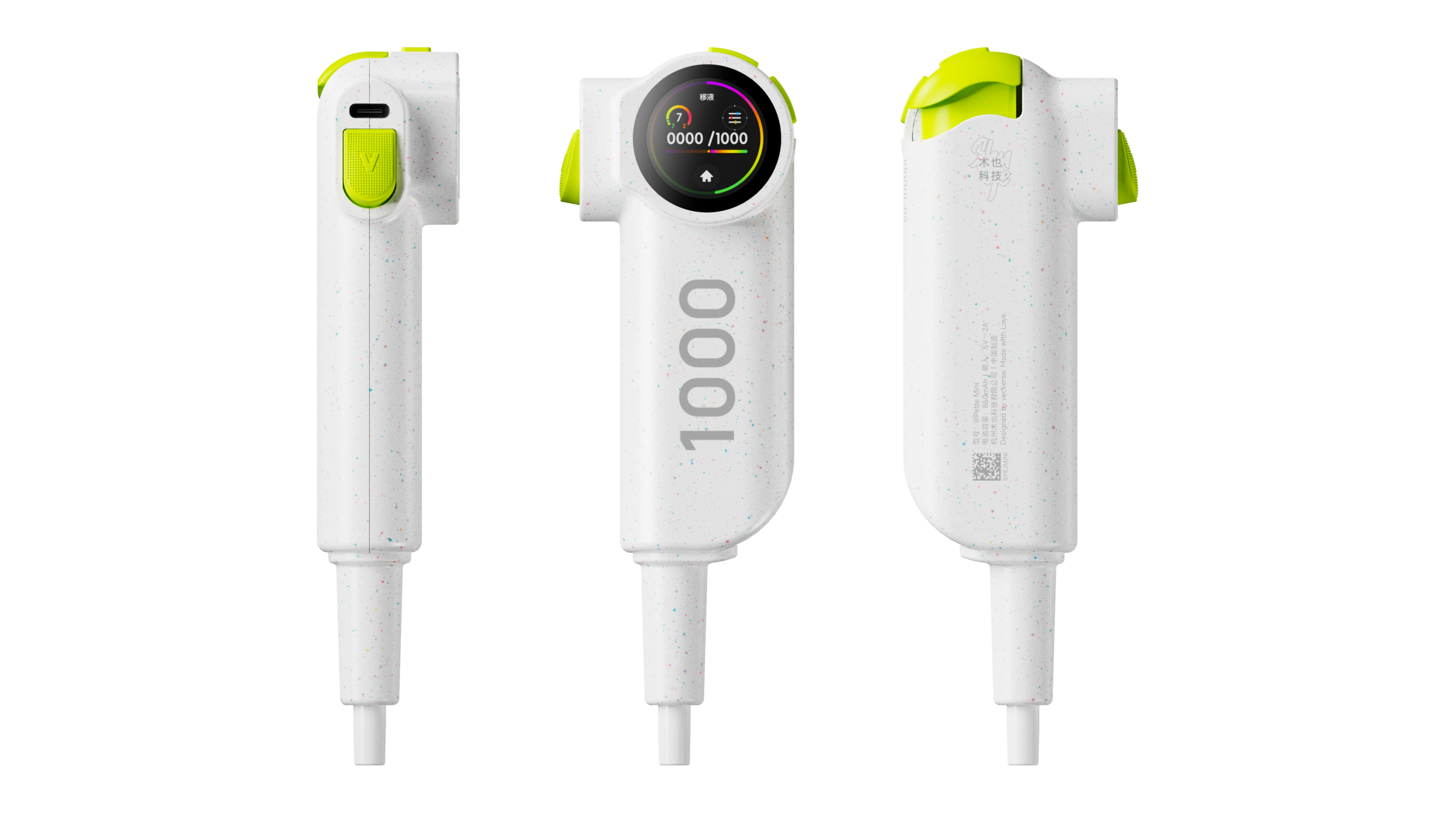

@Pette Mini 1000 µL
Specifications
Core operating specifications and manufacturer-reported performance data for the five @Pette Mini single-channel, variable-volume configurations.
Operation
Pipette type
Single-channel, variable-volume
Operating modes
Pipetting / dispensing / reverse
User interface
Integrated touchscreen
Volume coverage
0.5–1000 µL across five models
Power & Connectivity
Charging connection
USB Type-C
Full charging time
Approx. 40 min
Operating capacity
3,000+ cycles*
Wireless connection
Bluetooth / network pairing
Model Performance
Manufacturer-reported test results
Model
Dispensing range
Accuracy Assurance Range
Test volume
Volume error
Repeatability
10 µL
0.5–10 µL
0.5–10 µL
1 / 5 / 10 µL
±1.50 / ±0.30 / ±0.30%
≤2.00 / ≤0.60 / ≤0.20%
100 µL
2–100 µL
5–100 µL
10 / 50 / 100 µL
±0.50 / ±0.30 / ±0.20%
≤0.50 / ≤0.40 / ≤0.20%
200 µL
5–200 µL
20–200 µL
20 / 100 / 200 µL
±2.00 / ±1.00 / ±0.50%
≤0.80 / ≤0.50 / ≤0.30%
300 µL
5–300 µL
30–300 µL
50 / 150 / 300 µL
±0.60 / ±0.40 / ±0.40%
≤0.40 / ≤0.15 / ≤0.15%
1000 µL
10–1000 µL
≤0.50 / ≤0.20 / ≤0.20%
* A full charge provides more than 3,000 aspiration/dispensing cycles. Cycle count may be lower for high-volume models. Performance values are averages reported by the manufacturer from repeated tests under specified laboratory conditions.
