Aluminum Cooling Blocks

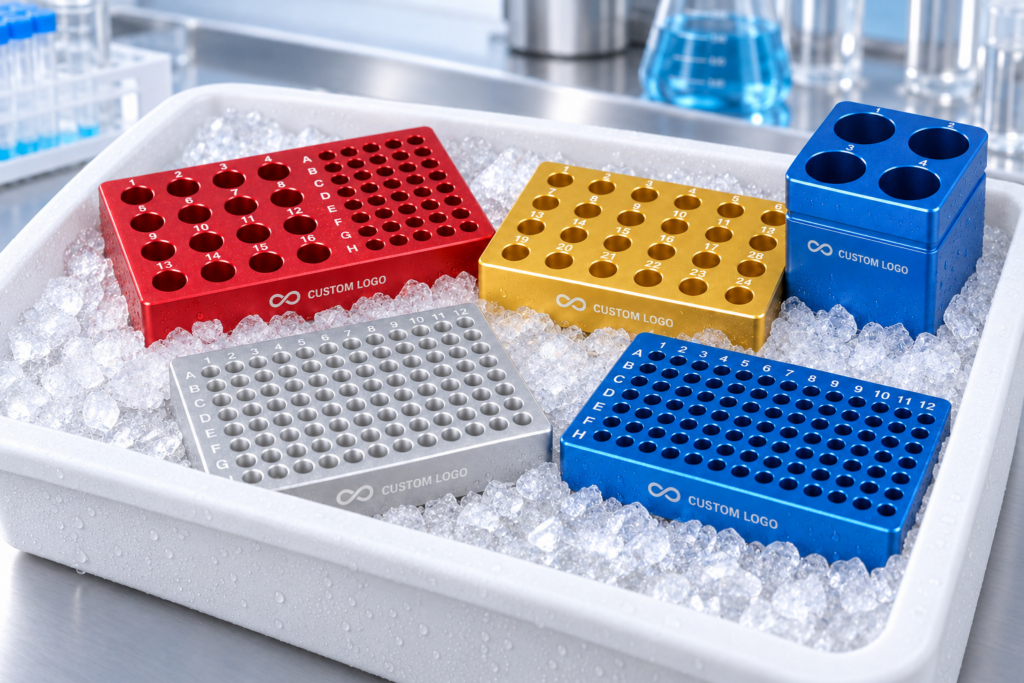

Precision-machined aluminum blocks designed to cool and organize tubes in an ice bath. Available in multiple standard tube formats and anodized colors, with optional logo engraving and silicone protective sleeves.
- Fast Sample Cooling
- Portable, Power-Free Design
- Multiple Standard Tube Formats
- Optional Logo Engraving & Silicone Sleeves
Product Highlights
Fast Cooling
High-conductivity aluminum helps samples cool quickly when the block is placed in an ice bath.
Portable & Power-Free
The compact blocks require no electricity. Simply place the block in an ice bath wherever sample cooling is needed.
Reusable & Cost-Effective
Durable aluminum construction supports repeated laboratory use, providing a practical and economical solution for routine sample cooling.
Stable Sample Organization
Precisely machined wells keep tubes upright, separated and clearly positioned while samples are maintained on ice.
Standard Formats for Common Laboratory Tubes
Choose from eight standard configurations designed for common PCR tubes, microcentrifuge tubes and centrifuge tubes.

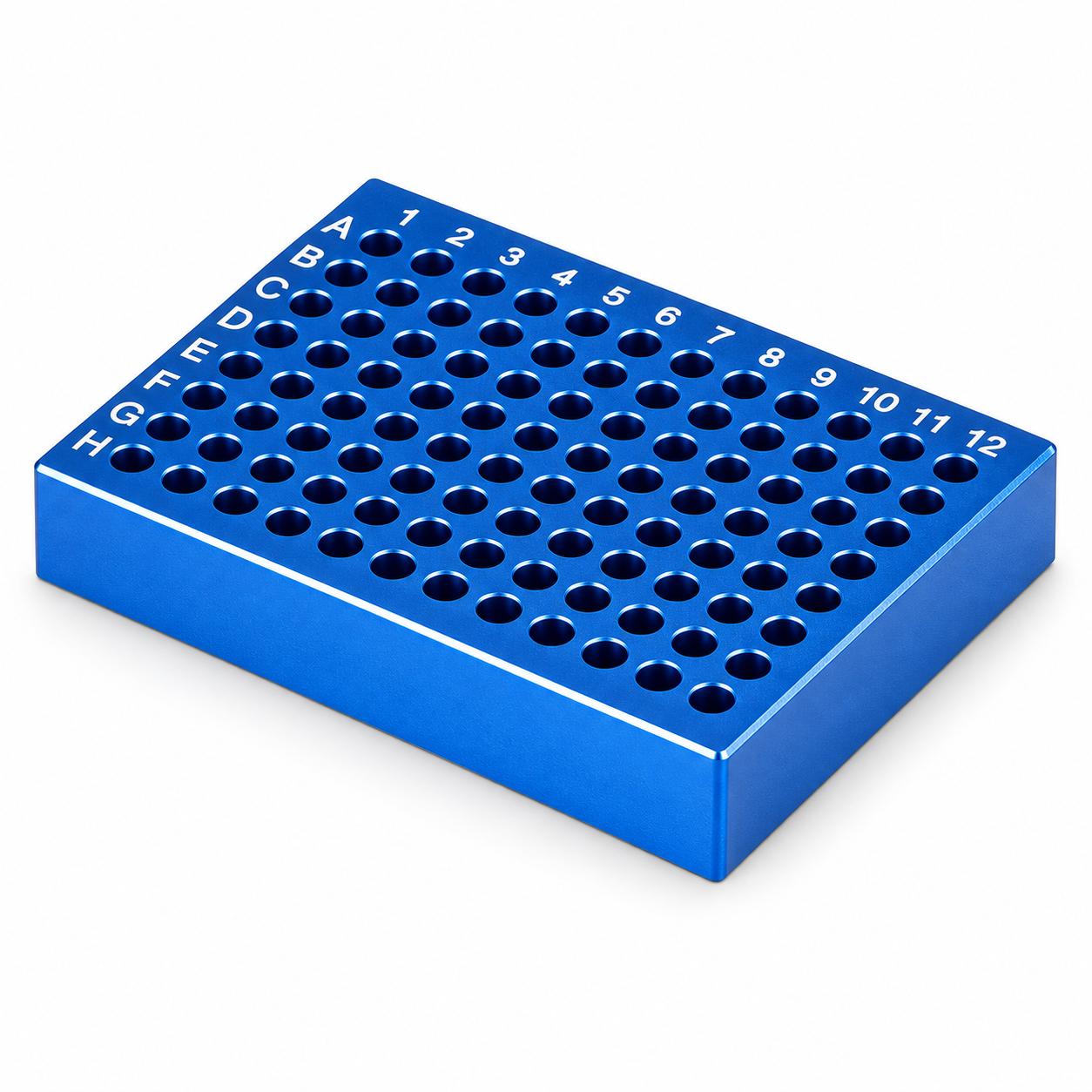

0.2 mL — 96-Well
For 0.2 mL PCR tubes and plates
119 × 87 × 20 mm

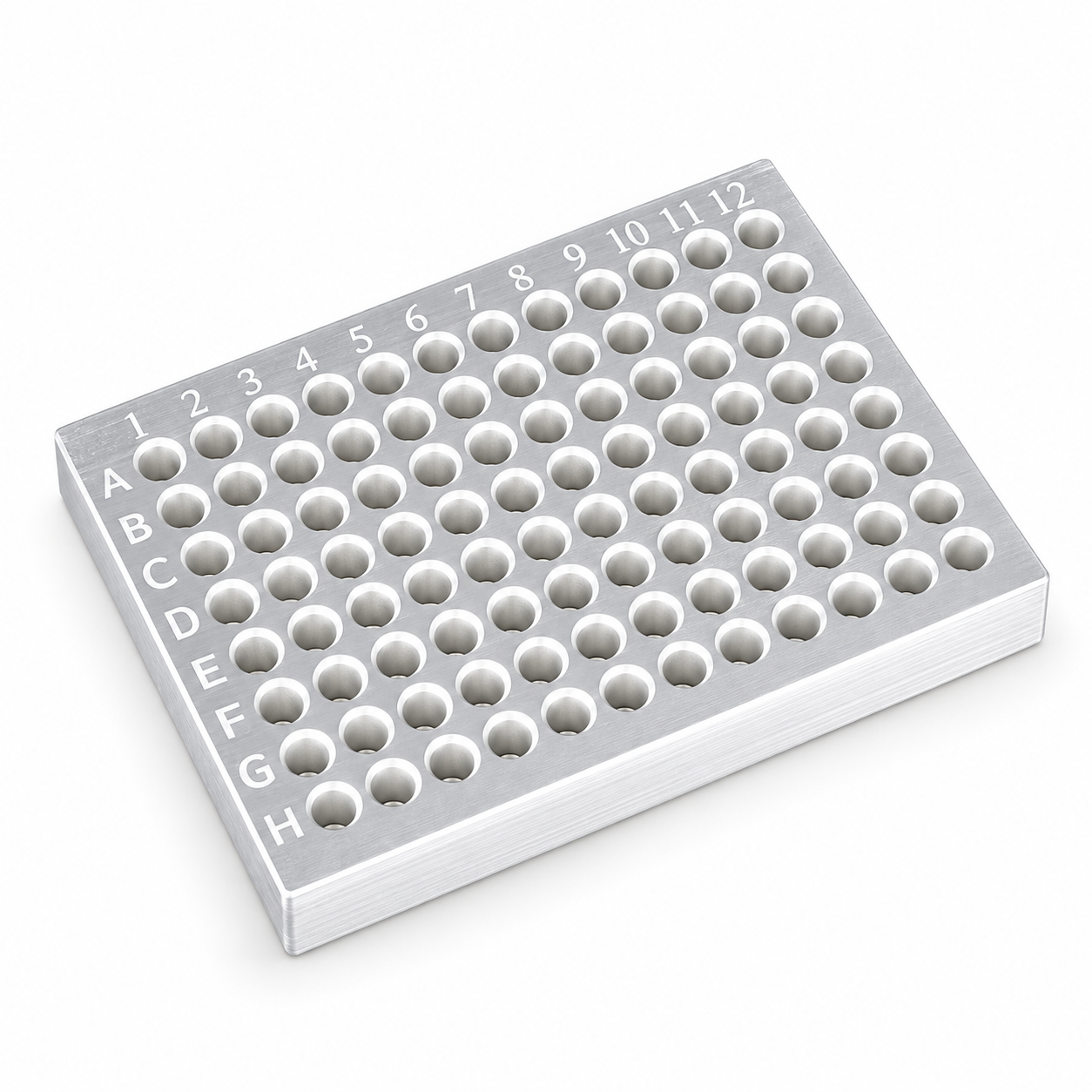

0.2/0.5 mL — 96-Well
For 0.2 mL and 0.5 mL tubes
120 × 86 × 20 mm

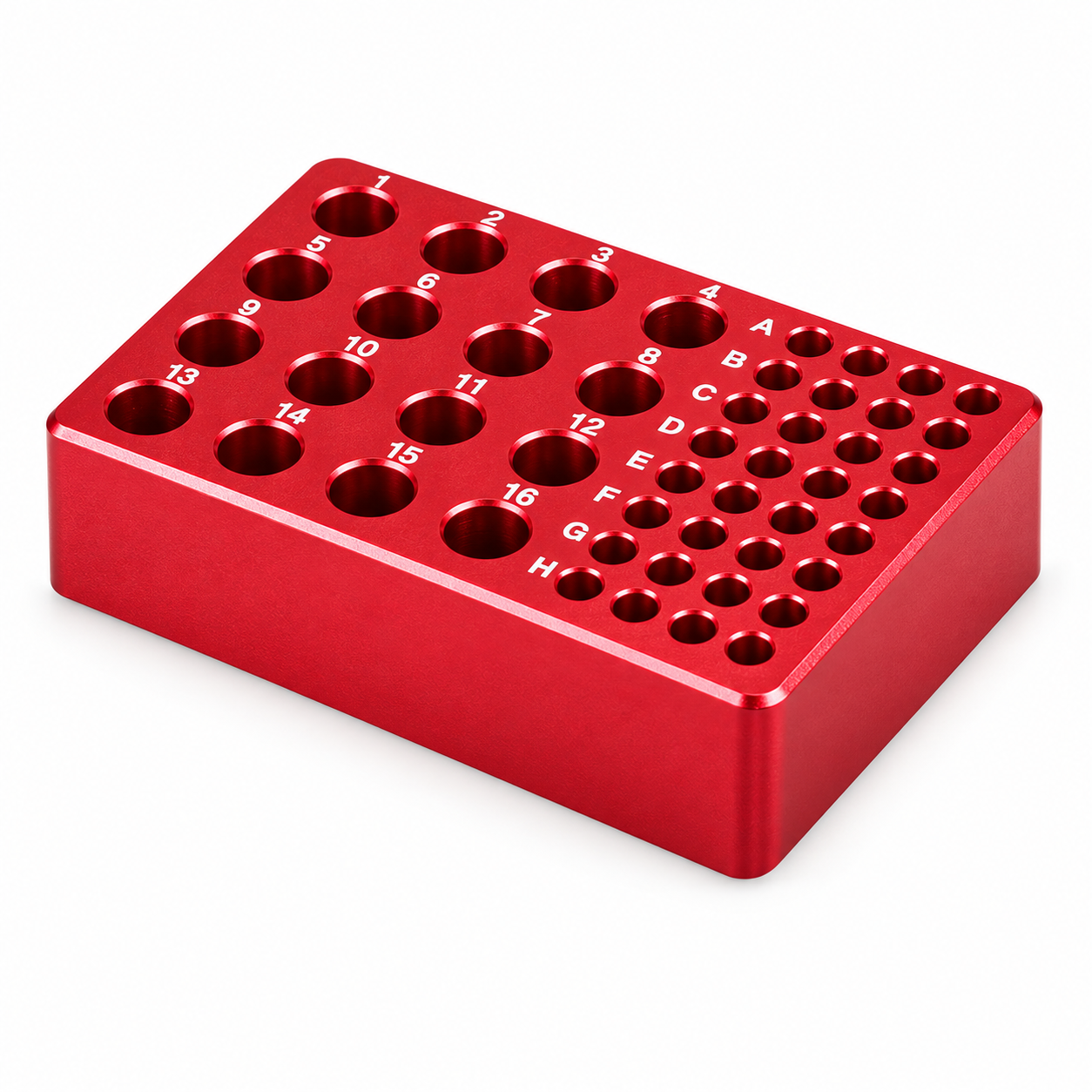

0.2/1.5/2 mL — Mixed 48-Well
16 wells for 1.5/2 mL tubes + 32 wells for 0.2 mL tubes
118 × 77 × 30 mm

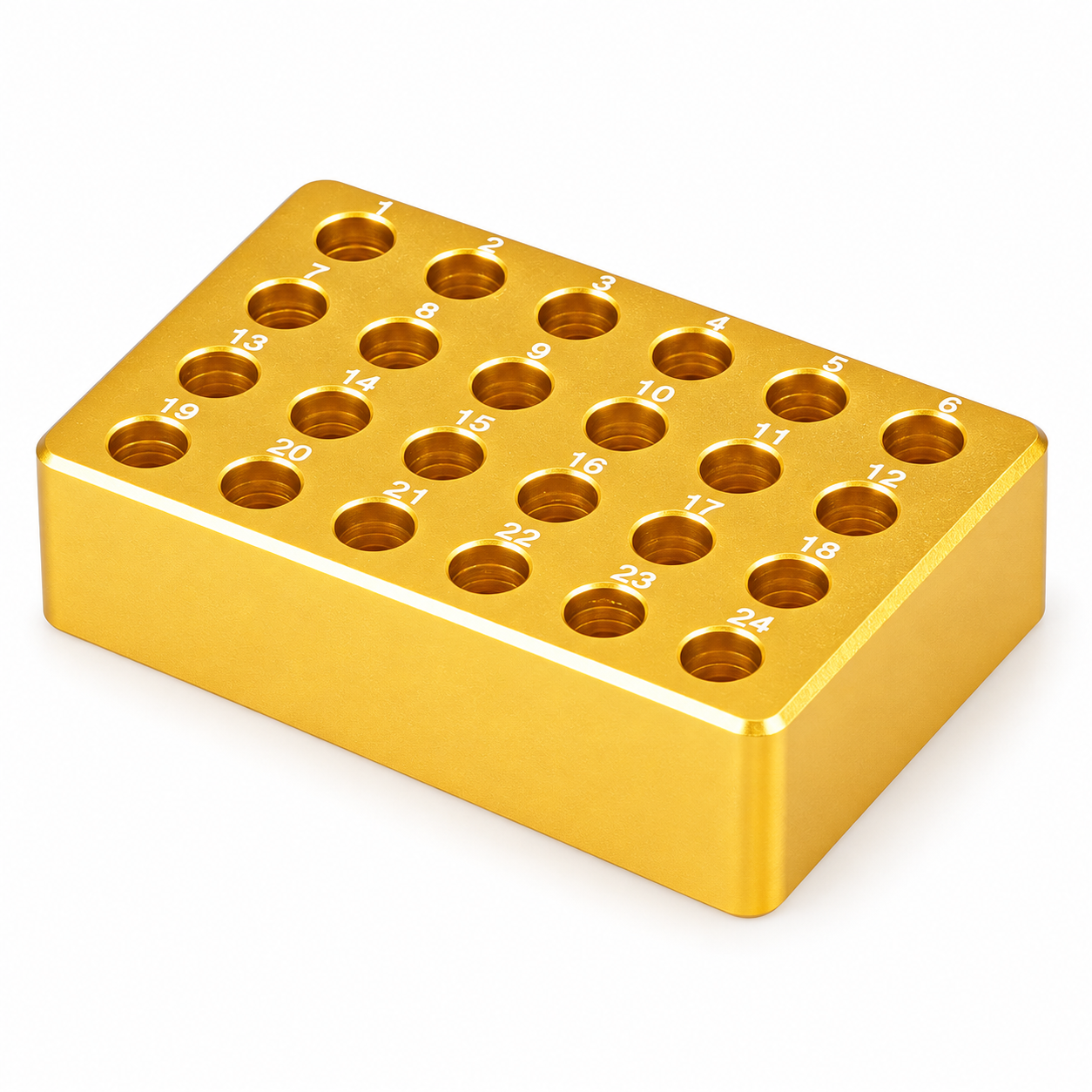

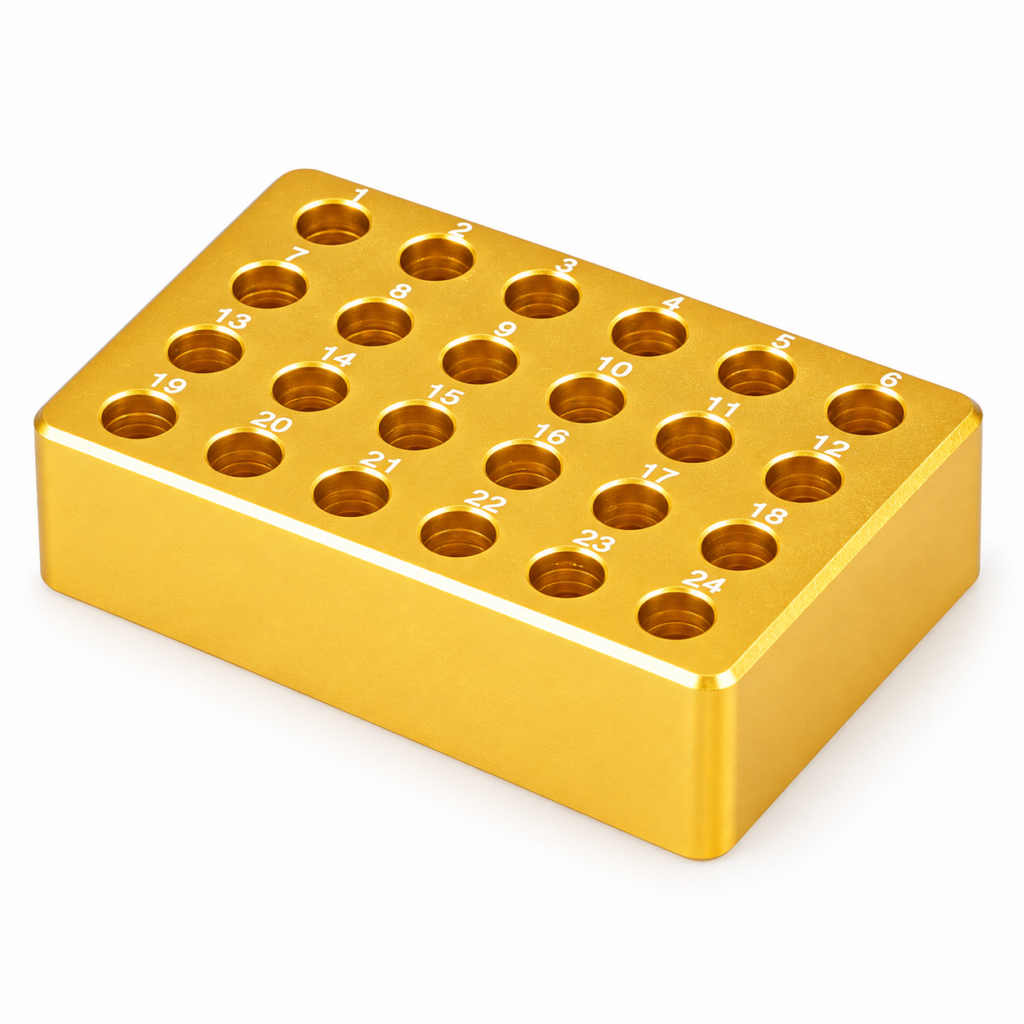

1.5/2 mL — 24-Well
For 1.5 mL and 2 mL microcentrifuge tubes
118 × 77 × 30 mm

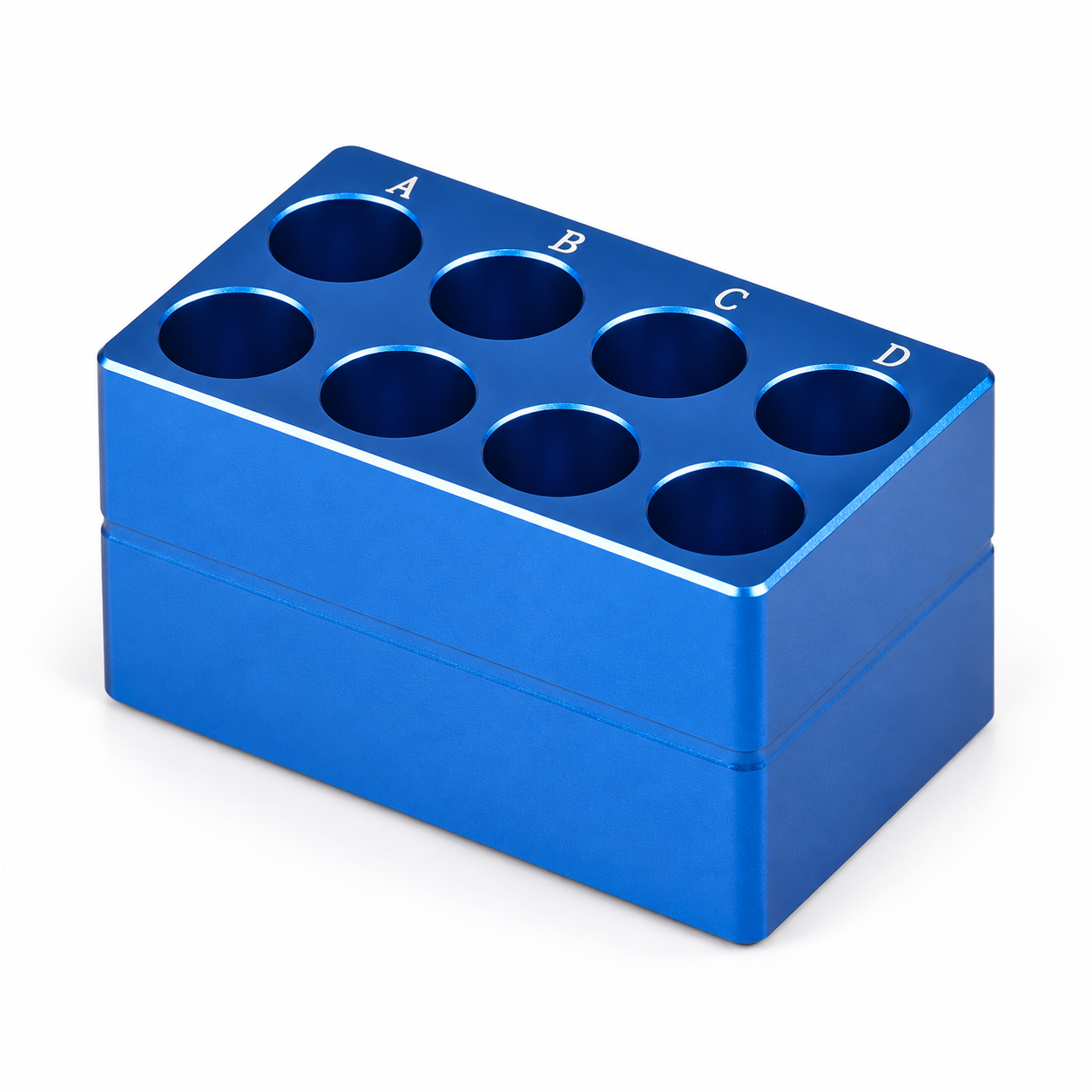

5 mL — 8-Well
For 5 mL laboratory tubes
83 × 48 × 44 mm

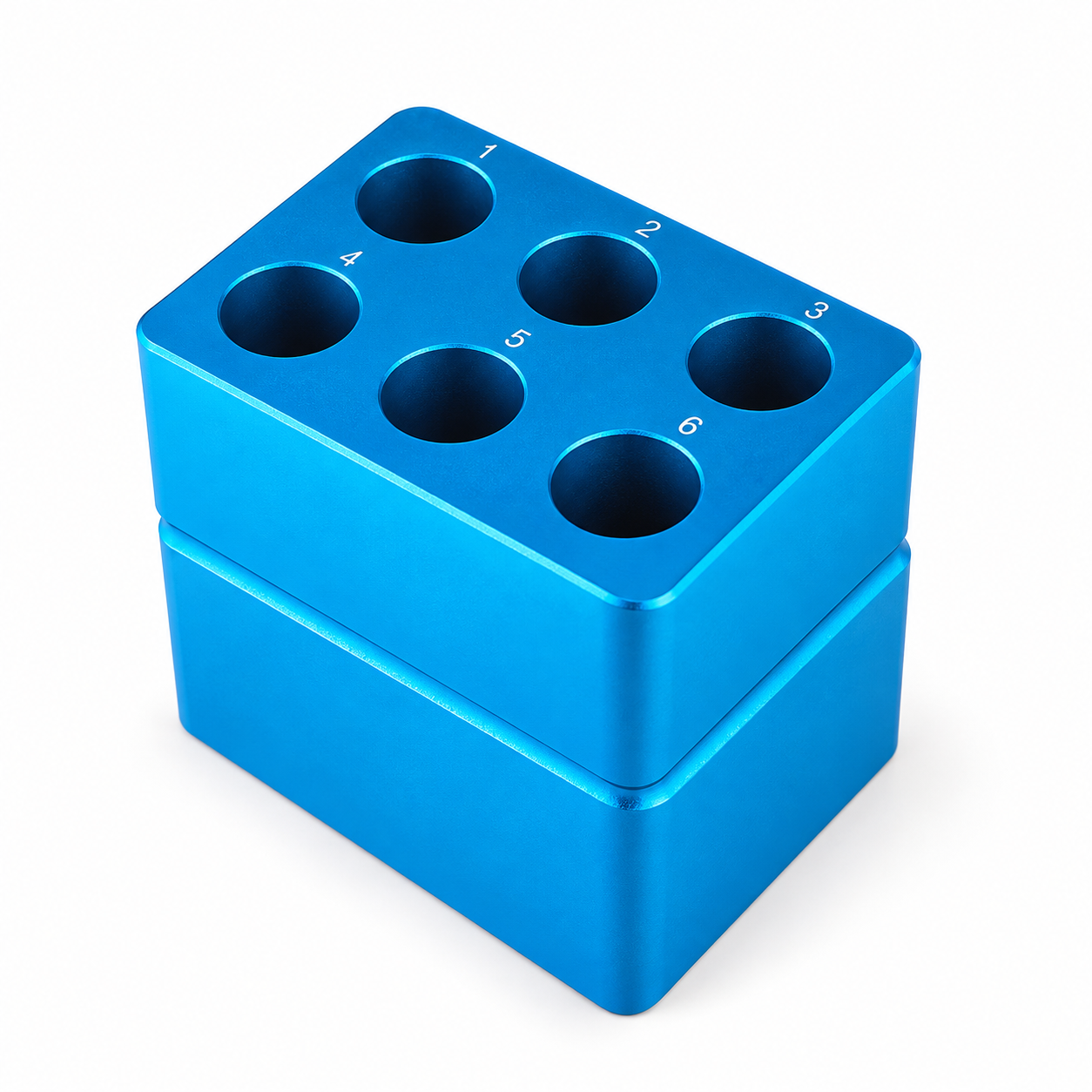

10/15 mL — Elevated 6-Well
For 10 mL and 15 mL centrifuge tubes
78 × 57 × 75 mm

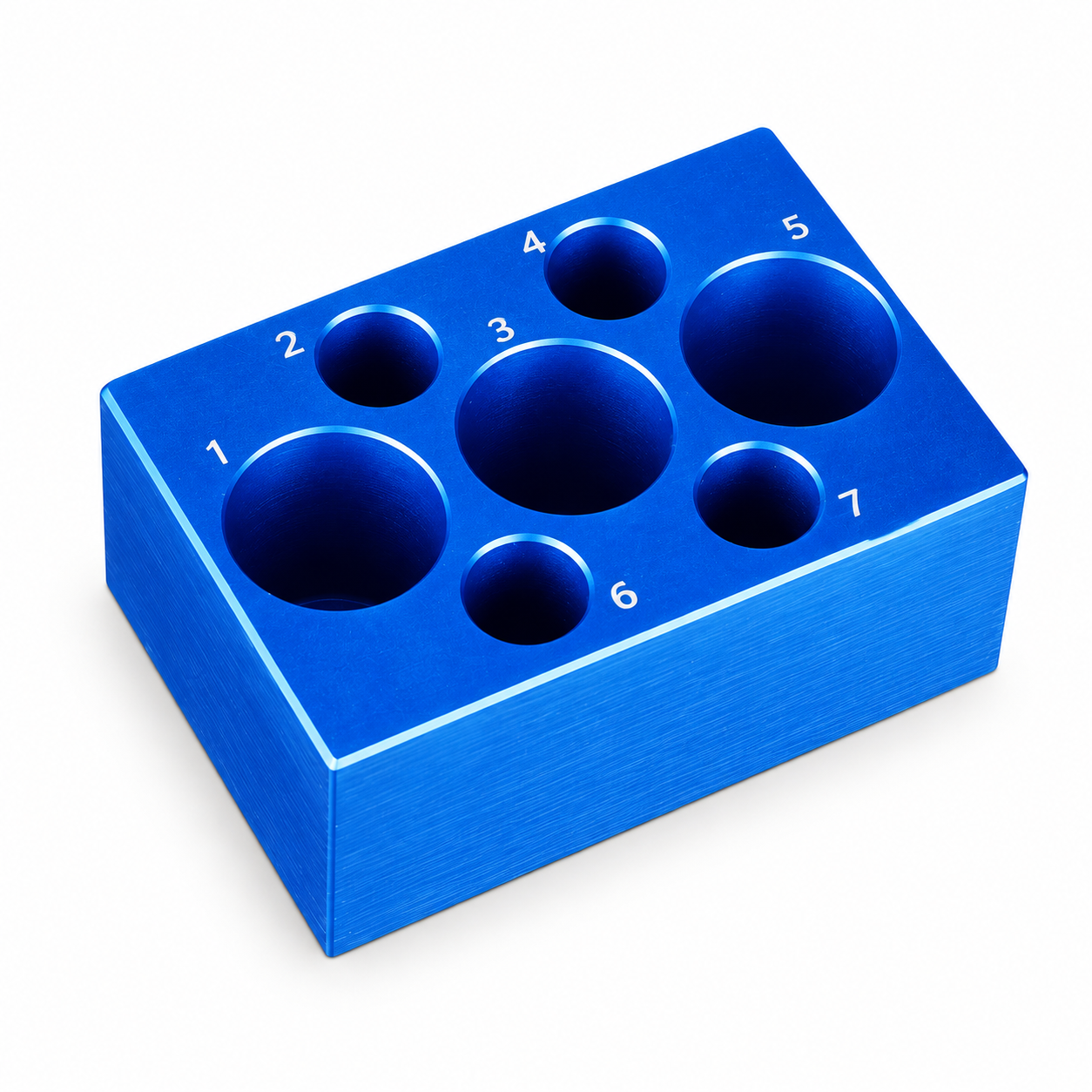

10/15/50 mL — Mixed 7-Well
Four wells for 10/15 mL tubes + three wells for 50 mL tubes
106 × 70 × 54 mm

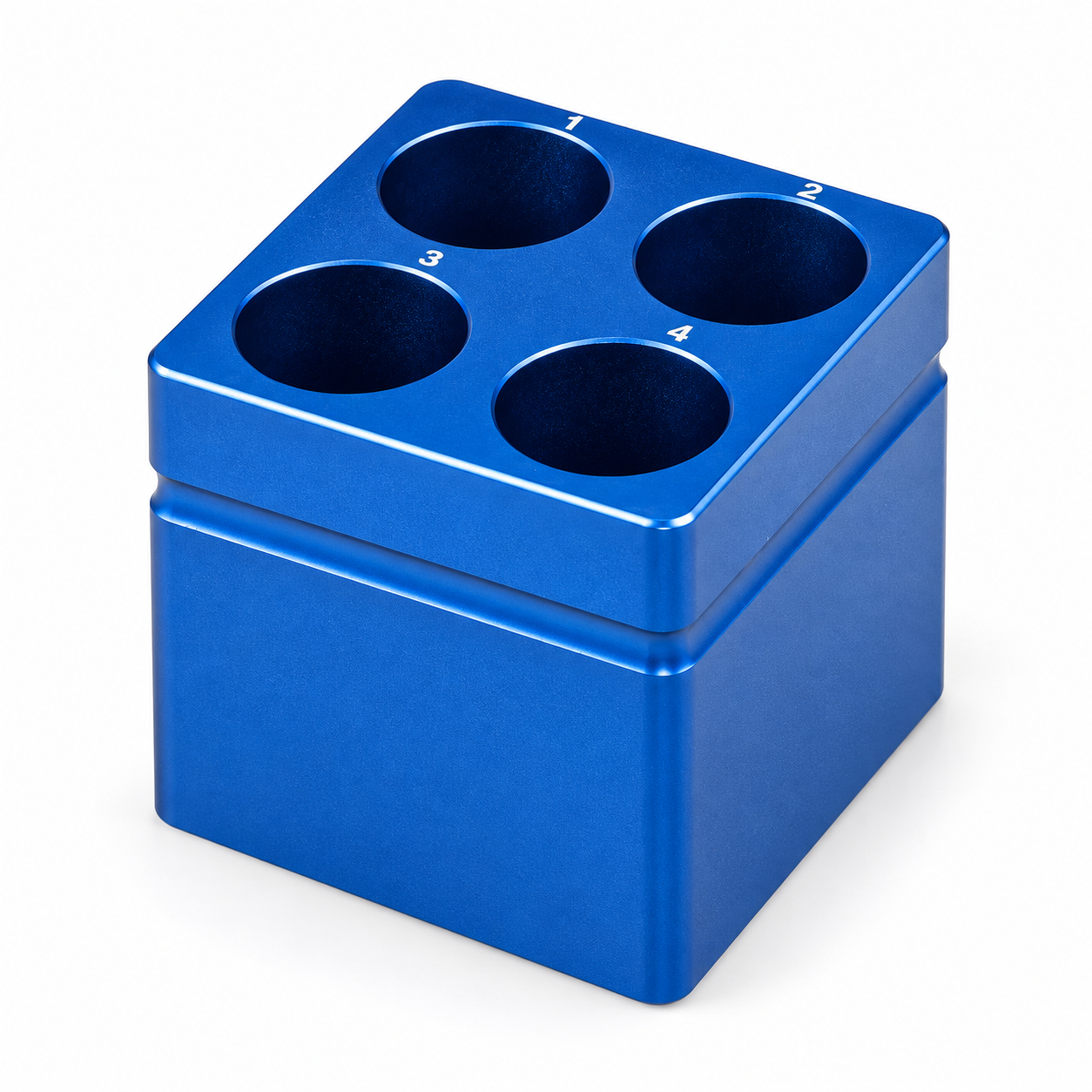

50 mL — 4-Well
For 50 mL centrifuge tubes
78 × 78 × 75 mm
CUSTOMIZATION OPTIONS

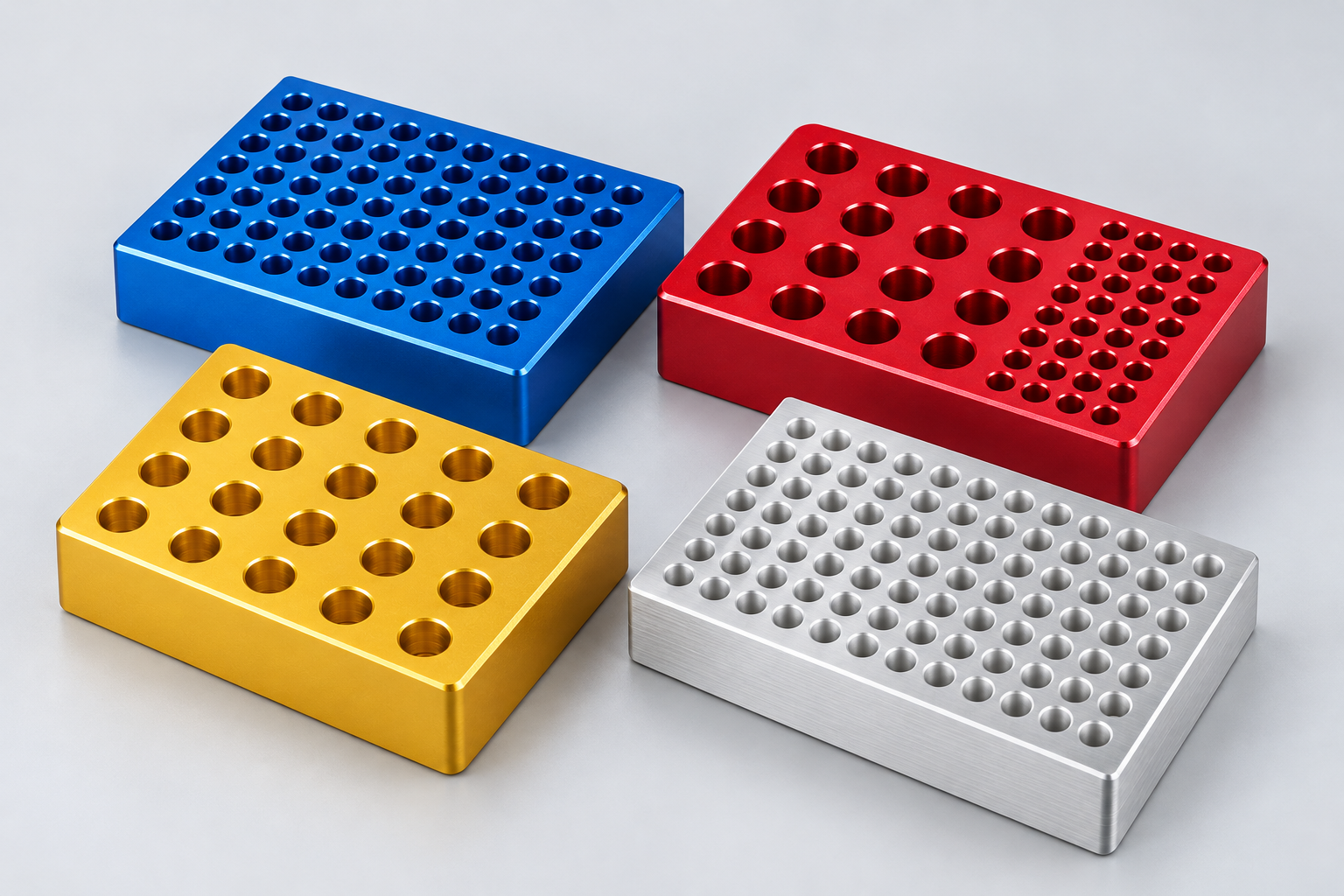

Colors and Logo Customization
Choose from standard blue and gold finishes, with custom anodized colors and logo engraving available to suit your laboratory, brand or event.
Standard & Custom Colors
Blue and gold are the most commonly selected colors. Red, silver and additional anodized colors can be customized, subject to order quantity and production confirmation.
Custom Logo Engraving
Add a company, university, laboratory or event logo to selected block configurations. Logo placement and engraving details are confirmed before production.
Specifications
Dimensions and well configurations for the eight standard aluminum cooling block formats.
Model
Wells
Compatible Tubes
Dimensions (L × W × H)
Well Diameter
0.2 mL
96
0.2 mL PCR tubes and plates
119 × 87 × 20 mm
Ø6 mm
0.2/0.5 mL
96
0.2 mL and 0.5 mL tubes
120 × 86 × 20 mm
Ø6 mm
0.2/1.5/2 mL Mixed
48
32 × 0.2 mL + 16 × 1.5/2 mL
118 × 77 × 30 mm
Ø6 mm / Ø11 mm
1.5/2 mL
24
1.5 mL and 2 mL microcentrifuge tubes
118 × 77 × 30 mm
Ø11 mm
5 mL
8
5 mL laboratory tubes
83 × 48 × 44 mm
Ø16 mm
10/15 mL Elevated
6
10 mL and 15 mL centrifuge tubes
78 × 57 × 75 mm
Ø16 mm
10/15/50 mL Mixed
7
4 × 10/15 mL + 3 × 50 mL
106 × 70 × 54 mm
Ø16 mm / Ø29 mm
50 mL
4
50 mL centrifuge tubes
78 × 78 × 75 mm
Ø29 mm
* Dimensions are nominal. Product appearance and available colors may vary by configuration. Custom dimensions and well layouts are available for qualifying orders.

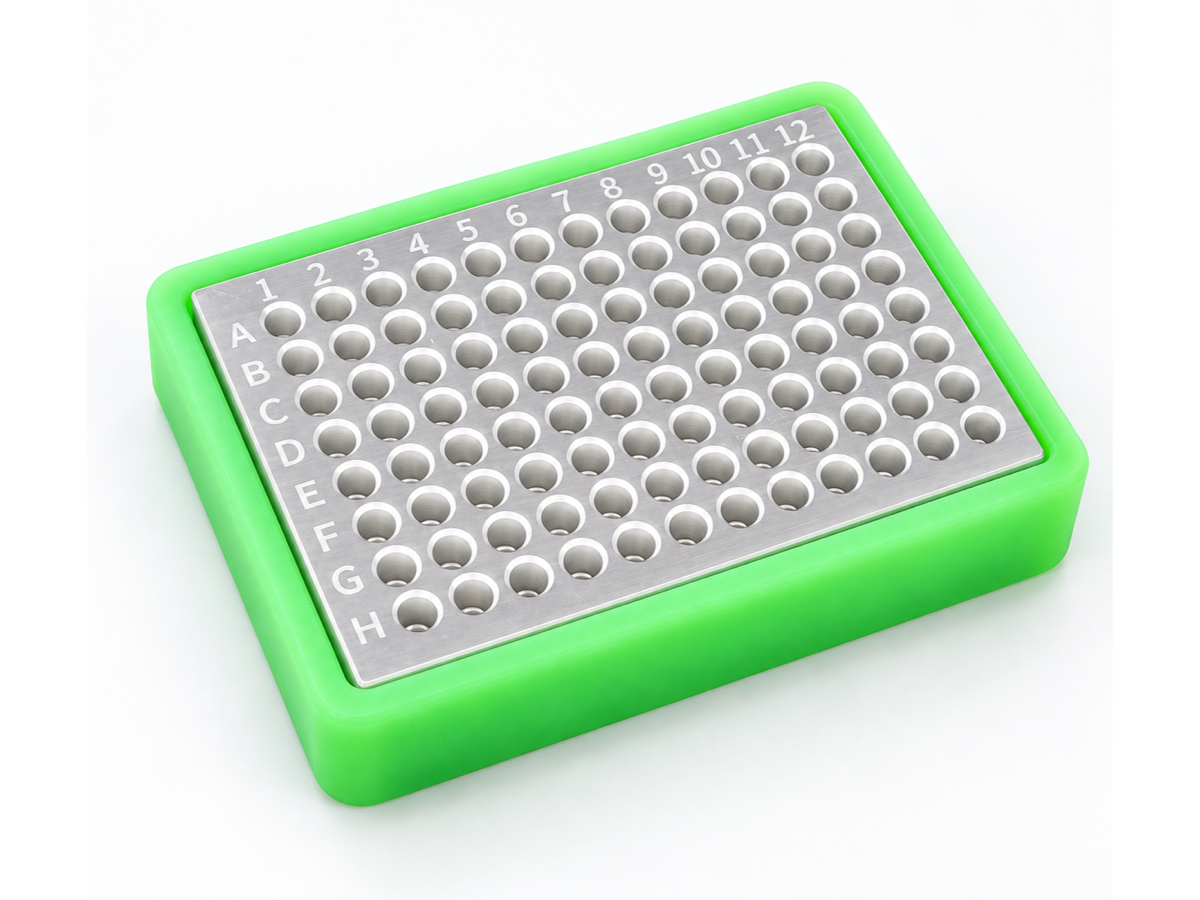

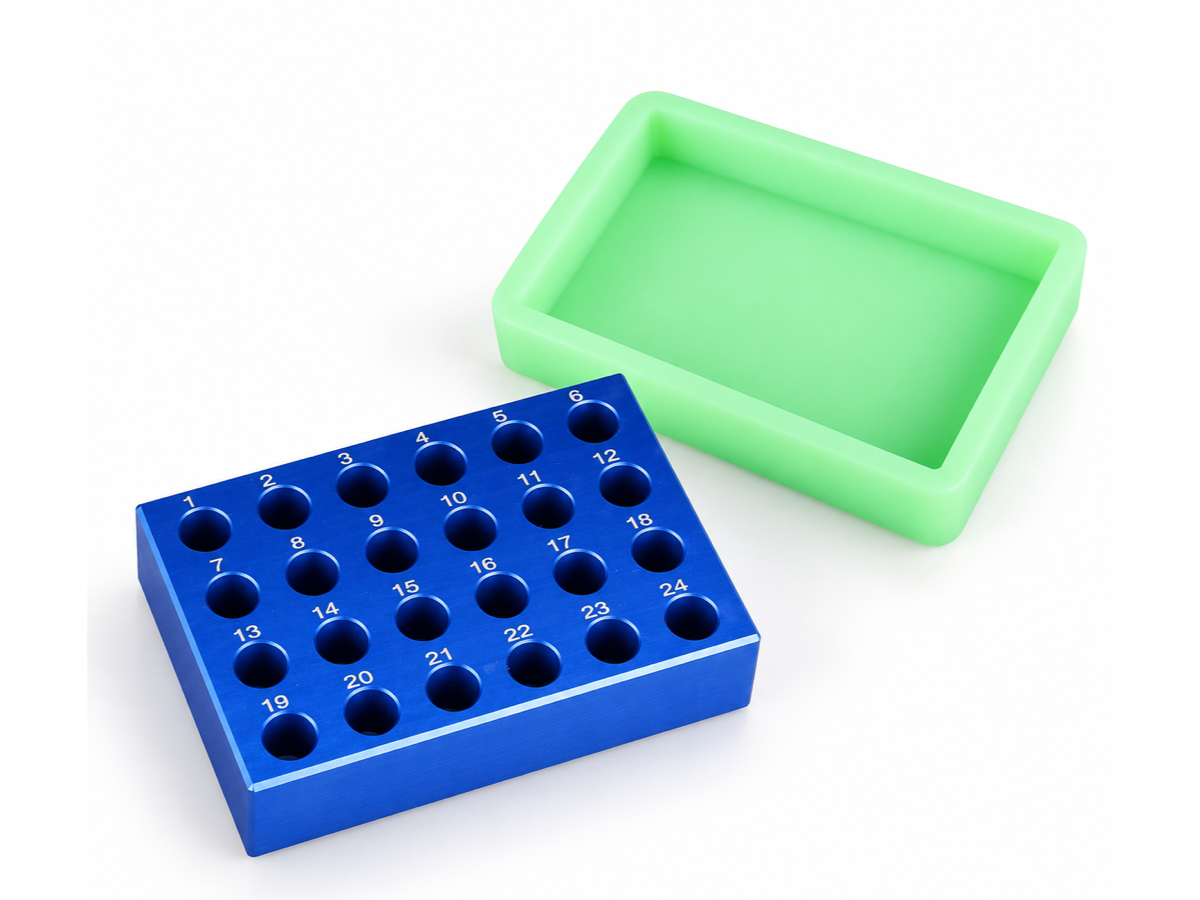

Silicone Bases

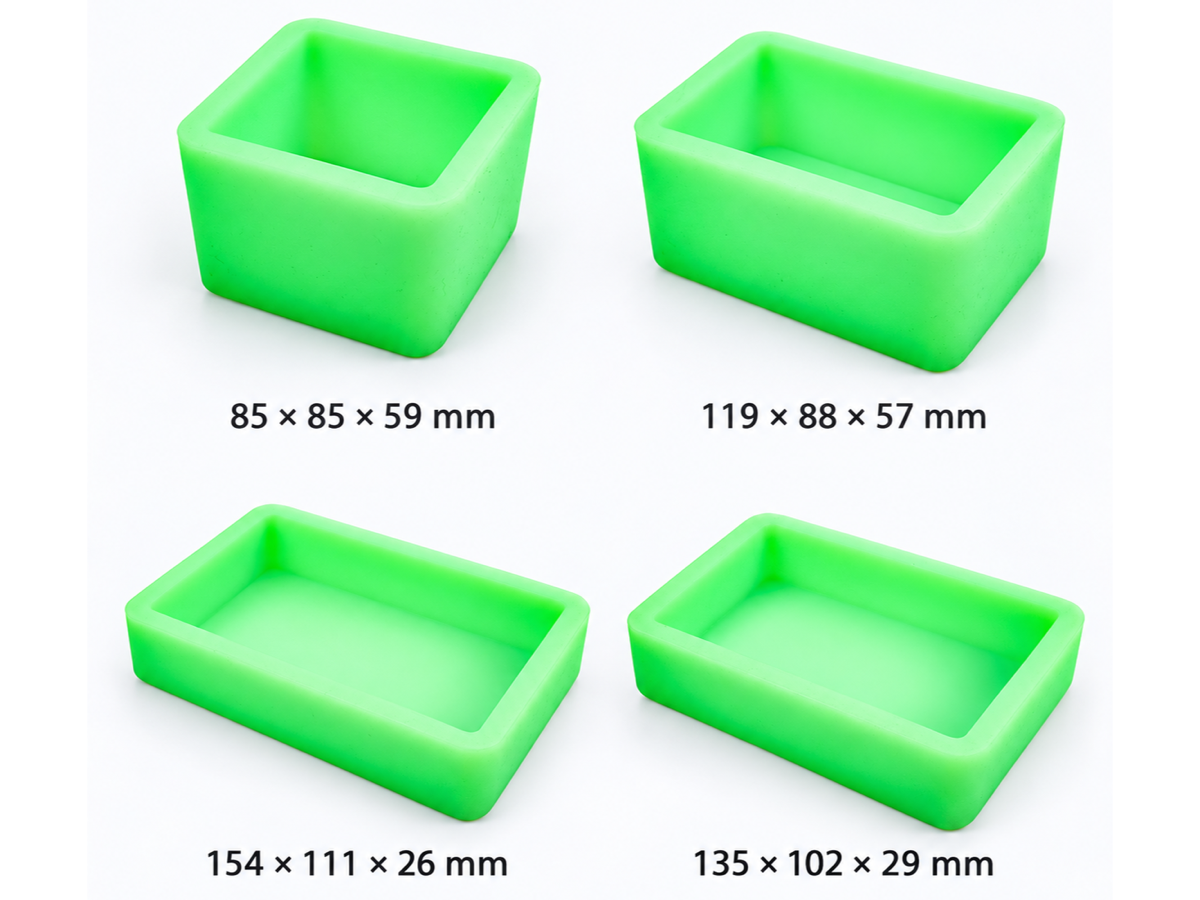

Matching Silicone Bases
Secure, Close-Fitting Design
Multiple Sizes Available
